Deploying JTS advanced wireless technology together with the most sophisticated components can be found in the industry the UF-Series provides revolutionary features.

The JTS wideband auto frequency tracking technology provides up to 75 MHz bandwidth with 3000 selectable frequencies. Preset 15 groups
each of up to 63 interference-free compatible channels per band while 6 groups each of 64 user- programmable channels are also available.
There true diversity system assures operation distance from 200 to 480 meters depending on your local regulation.

JTS LCX circuit design technology together with SAM-8LN capsule minimize companding noise and make UF-20 ideal for large venue.
The world’s first JTS patterned “REMOSET” function allows automatic remote control frequency settings of the transmitter from the receiver.

Features

UHF True diversity technology renders 200-480 meters of operation distance
Maximum 2400 to 3000 selectable frequencies across 60 to 75 MHz
Preset 15 groups each of up to 63 compatible channels
User programmable 6 groups each of 64 channels
Free space scan function
JTS Patented obstacle-free RF function synchronizes a transmitter by pushing a button, and also transmitting RF power, sensitivity, low cut, key lock and user’s name.
JTS LCX circuit design technology minimizes Companding noise
RF “NO SIGNAL” alert function.
AF “MUTE” alert function.
Transmitter “LOW BATTERY” alert function.
Built in equalizer
Power / Antenna cascading output provided.

Technical specifications

Frequency Preparation: PLL Synthesized Control
Frequency Setting:
JTS patented obstacles-free RF REMOSET
Carrier Frequency Range: UHF 470~960MHz
Channel: Single
Bandwidth: 60~75MHz Wideband
S/N Ratio: >108dB(A)
T.H.D.: <0.5%@1KHz
Chassis: 1U standard metal chassis
Preset Channels / Group:
From group 1 ~ 15 up to 63 interference-free compatible channels.
844 preset channels/group and 3000 selectable frequencies across 60 to 75 Hz Bandwidth.
User programmable from U1 ~ U6 each of 64 channels reserved.
Display: LCD
Display Contents: Group, Channel, Frequency, Antenna A/B ,RF/AF Level Meter, Mute Display,Transmitter Battery Status, REMOSET ID Number,User Name, Squelch
Sensitivity: 6dBµV, at S/N>80dB
Receiving Mode: True diversity
Audio Output Level: Maximum 6dBu
AF Output Impedance: 600O
Frequency Response:
50Hz~18kHz, with high-pass filter
Squelch: Pilot Tone & Noise Mute
Power Supply: 100~240V or 12V DC
Output Connector: 2 XLR Balanced Socket / 2 Ø6.3mm Balanced phone jack
Dimension(mm): 485mm(W)x45mm(H)x260mm(D)

Notes: Actual product specifications may vary
depending on model and region.

Komplette systemer

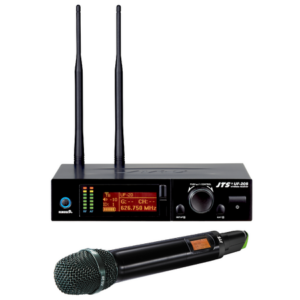

JTS UF-20S/JSS-20 Trådløst system

JTS UF-20S/JSS-20 Trådløst system

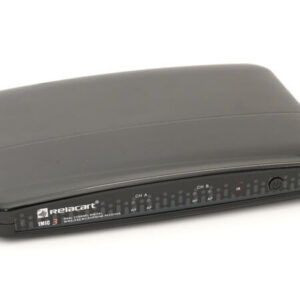

RELACART IMIC-3 dobbelt mikrofonsystem
