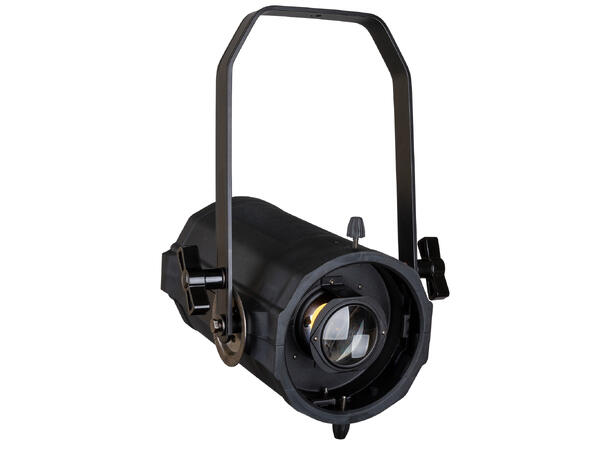

BRITEQ BT-PROFILE 500TW/LED Engine

Beskrivelse

LED Profile Spot based on a special 500W (2800K + 6000K) COB LED module and multiple options sold separately: different optics (ETC compatible), gobo holder, iris.

• This LED profile spot is based on high power LED technology
• It’s a perfect companion to our BT-THEATRE 400TW
• For your convenience the projector is sold as two separate parts:
  • BT-PROFILE 500TW/LED ENGINE
    • Equipped with a high power tunable white COB LED (2800K-6000K)
    • Extremely silent cooling system using heat pipe technology
    • Compatible with ETC® Source Four-optics

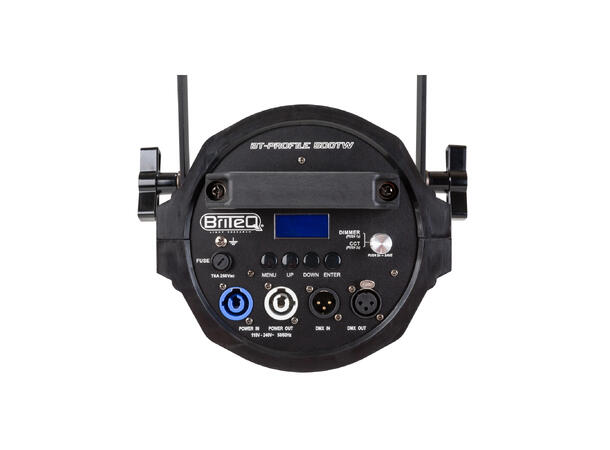

    • LCD-screen for easy settings.
    • 5 working modes:
      • Manual control over intensity and different CCT-presets
      • 4 different DMX modes with 8 or 16bit dimming and CCT control
    • Different dimmer curves:
      • Linear
      • Square law
      • Inverse square law
      • S-curve
  • DIFFERENT OPTICS:

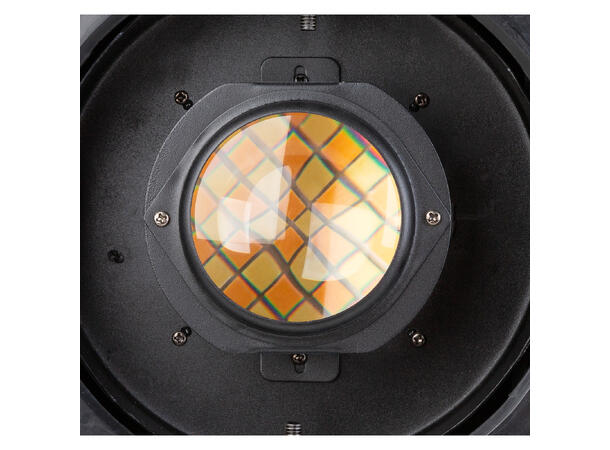

    • Specially coated optics for sharply defined crisp projections
    • Four profile blades, specially coated for minimum reflections

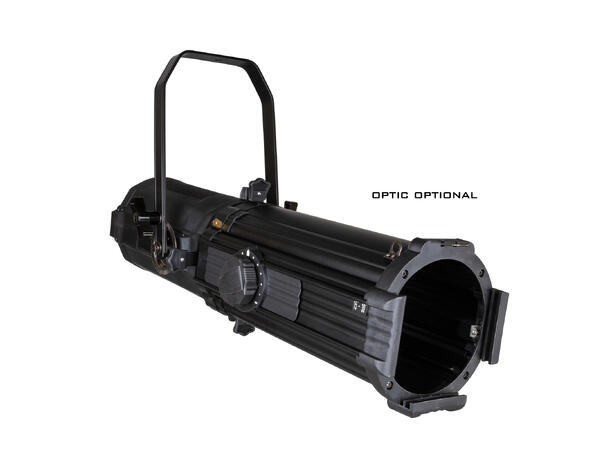

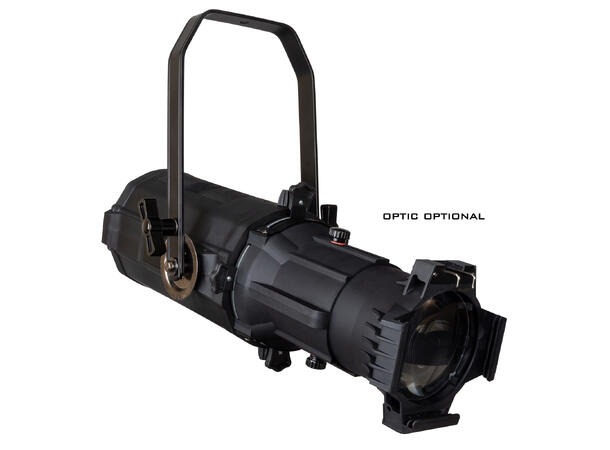

    • Different optical units are available:
      • BT-PROFILE250/OPTIC 19DEG – fixed 19° beam angle
      • BT-PROFILE250/OPTIC 26DEG – fixed 26° beam angle
      • BT-PROFILE250/OPTIC 36DEG – fixed 36° beam angle
      • BT-PROFILE250/OPTIC 50DEG – fixed 50° beam angle
      • BT-PROFILE160/OPTIC 15-30 – 15°-30° zoom range
      • BT-PROFILE160/OPTIC 25-50 – 25°-50° zoom range
    • Lockable compartment for use of the optionally available:
      • GOBO Holder (“BT-PROFILE160/GOBO HOLDER”)
        Outer diameter gobos: 86mm, optical diameter: 48m
      • IRIS (“BT-PROFILE160/IRIS”)
        Aperture diameter: adjustable from 5mm to 74mm
    • Can replace ETC Source Four-optics
    • Optical barrel can be rotated and locked I any position
