Beskrivelse

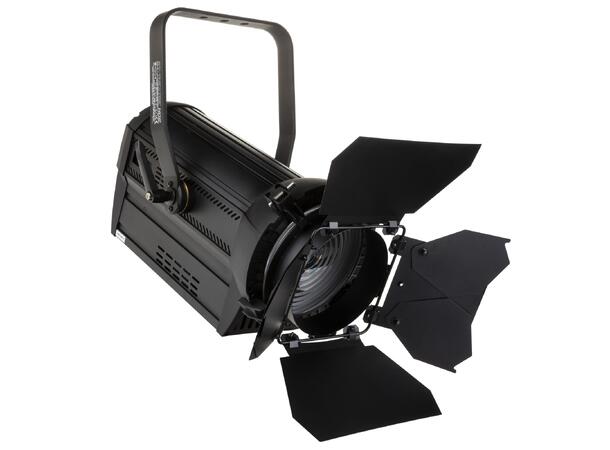

A powerful “ALL-IN-1” LED theater spot with motorized 14° ~ 55° zoom.
No more need for separate white and color projectors, BT-THEATRE HD2 does it all:
- Perfect WHITE with high CRI > 90Ra and CCT presets
- Rich COLOR selection with color presets!
- Thanks to the new CCS Color Calibration System the color differences between different batches is a problem of the past!
- Different CCT presets for white: …, 2700K, …, 3000K, 3200K, …, 4000K, …, 5600K, …
- Different color presets (LEE® / ROSCO® numbering)
- Based on a 200watt 5-color RGBAL-LED (Red, Green, Blue, Amber, Lime)

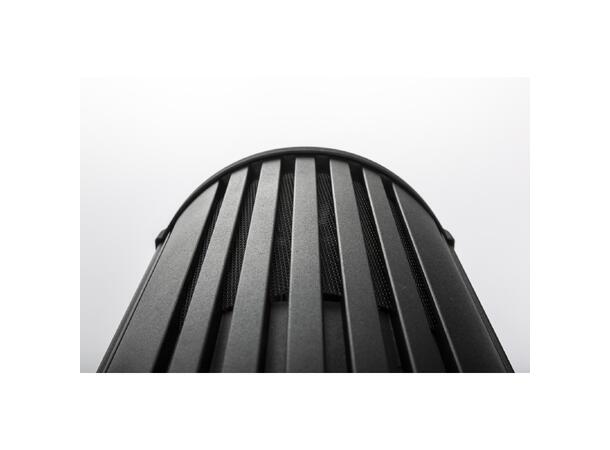

- Very silent operation: heat-pipe technology with low noise cooling fan and different presets (live, studio, …)
- DMX-controlled: 4 different channel modes for maximum flexibility
- RDM-functionality for easy remote setup: DMX addressing, channel mode, …
- Flicker free TV-recordings thanks to the adjustable high LED-refresh rate!
- Four dimmer settings with different behavior & speed.
- Manual control for dimming, colors, CCT & zoom.
- OLED-display to navigate easily through the setup menu!
- In case of DMX failure, you can choose between blackout and freeze mode.
- Lock function to avoid unwanted altering of the settings.
- Rugged extruded aluminum housing.

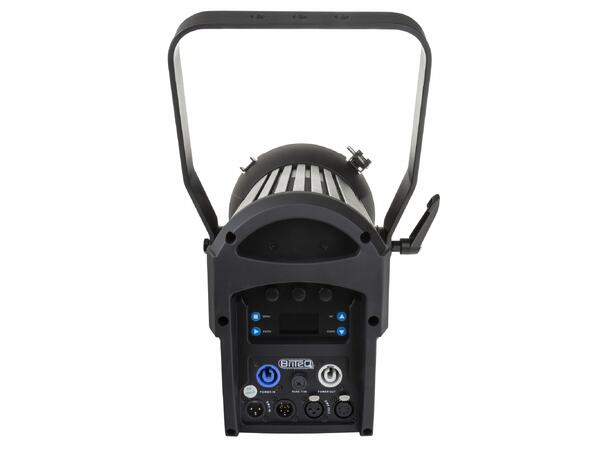

- 3 & 5pin DMX in/outputs + PowerCON in/outputs for easy daisy chaining.
- An 8-leaf barndoor (BT-THEATRE BARN2) is optionally available.
Spesifikasjoner
- General : Application Stage & Rental, Theatre
- General : Series No

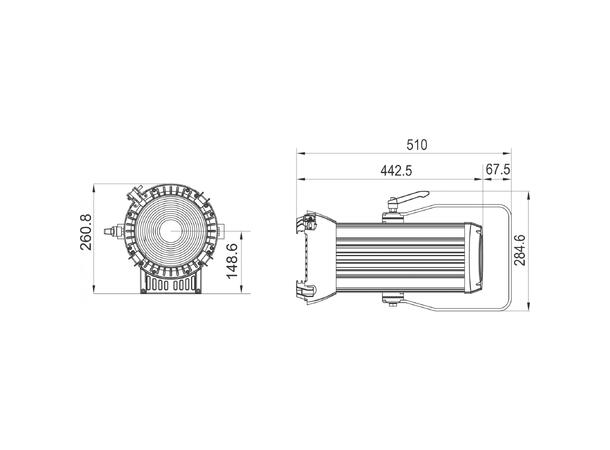

- General : Dimensions (cm) 45 x 29 x 26
- General : Weight (kg) 7.56
- General : Powerinput AC 100 – 240V, 50/60Hz
- General : Energy Label No
- General : Power consumption W 240
- General : Color black
- General : Display OLED
- General : Fixation optional standard clamp
- General : IP rating indoor
- Control : manual Yes
- Control : Master/Slave No
- Control : SMART-DMX No
- Control : Standalone fixed
- Control : programmable No
- Control : upgradable software Yes
- Control : maximum DMX channels 19

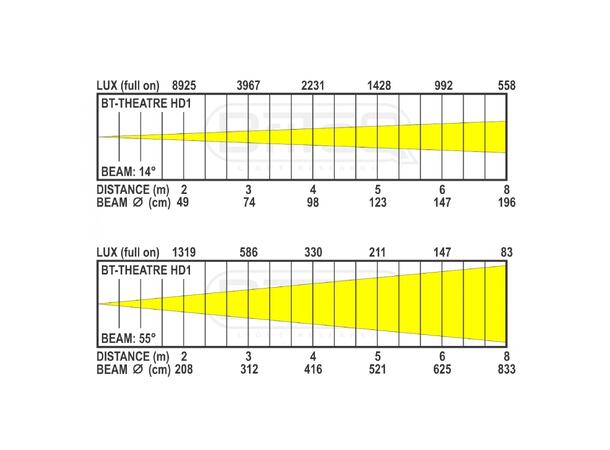

- Light : lamp socket none Light : Lux 1428 (5m)
- Light : lamp LED
- Light : min. color temperature (K) 1800
- Light : max. color temperature (K) 8000
- Light : CRI 90
- Light : colors Red, Green, Blue, Amber, Lime, RGB, RGBAL
- Light : mix colors No
- Light : functions motorized zoom
- Light : min. beam angle (°) 14
- Light : max. beam angle (°) 55
- Light : min. refresh rate (kHz) 0.6
- Light : max. refresh rate (kHz) 25 Connections : input 3 pin XLR, 5 pin XLR, PowerCon®, rdm Connections : output 3 pin XLR, 5 pin XLR, PowerCon® Brand BRITEQ
