SERIE DVM120
With the introduction of the CARDINAL 120 range, SOMMER CABLE is embarking on a new direction in the field of active components and audio tools. We had tried and proven designs which have reworked into a new range with a new housing concept. We believe this range meets the highest electronic, mechanical and audiophile requirements.

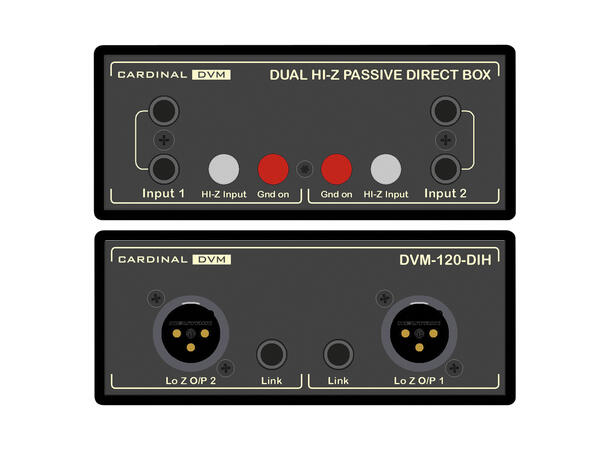

DVM-120-DIH High-impedance Dual Direct Box – the specialist!
The simple and reliable way of adapting even very demanding sources to microphone inputs. The special high-quality Lundahl transformers with 22 dB or 28 dB attenuation are suitable for high input levels and stand out by their ultra low distortion and
neutral response even at very low frequencies. Each
channel has an input with two bridged jack sockets; if
necessary, the input and output grounds can be linked
with the ground lift switch. The output signals are on
male XLR connectors.
The I/P impedance switch is used to switch between the normal input impedance of 280 kO and the
high impedance of 560 kO. In the HIGH position, the
design-related higher attenuation of 28 dB will occur.
Advantages:
- Uncompromising mechanical design – due to 18 mm recessed front panels, 3 mm thick aluminium profile & inset stacking feet
- Integrated wide-range mains supplies (90 – 240 V) – direct connection via IEC switch/fuse combination
- Developed for highest audiophile requirements
- Exclusive use of high-quality components
Miscellaneous:
- Frequency response:
Source 200 O, load 2k O: . . . . . . –0.1 dB/+0.1 dB/–0.5 dB 10 Hz/20 kHz/100 kHz
Source 68 kO, load 2 kO:. . . . . . . –0.1 dB/–0.7 dB/–5.5 dB 10 Hz/20 kHz/100 kHz
Source 47 kO, load 2 kO: . . . . . . . –0.7 dB/–6.1 dB/–17.3 dB 10 Hz/20 kHz/100 kHz
Application:
- Super high-grade audio tools and ideal helpers for live and studio applications
Specifications:
| Article number | DVM-120-DIDH |
|---|---|
| Name | BIG BRICK |
| EAN | 4049371097475 |
| Brand | CARDINAL DVM |
| Type | HighZ DI Box |
| Weight kg | 1,2 |
| Model | Professional |
| THD&N | = 0,008 % / 20Hz = 0,004 % / 1 kHz |
| THD&N | = 0.004% / 40 kHz (80 kHz measurement bandwidth) |
| Width mm | 120 |
| Height mm | 51 |
| Depth mm | 260 |
| Output symmetry | @ 20 Hz > 100 dB | @ 1 kHz > 95 dB | @ 20 kHz > 60 dB |
| Impedance | = 280 kO or = 560 kO / 1 kHz |
| Impedance | High impedance: = 0.008% / 40 kHz (80 kHz measurement bandwidth) |
| Impedance | High impedance: = 0.012% / 20 Hz = 0.008% / 1 kHz |
| Old article number | DVM-120-DIH |
