SERIE DVM120
With the introduction of the CARDINAL 120 range, SOMMER CABLE is embarking on a new direction in the field of active components and audio tools. We had tried and proven designs which have reworked into a new range with a new housing concept. We believe this range meets the highest electronic, mechanical and audiophile requirements.
DVM-120-DLI Dual Line Box – the dual-channel solution!
The Lundahl 1:1 line transformer used in this dual-channel device was custom-developed for applications with very high levels. It stands out by its ultra low distortion and neutral response down to extremely low frequencies. Therefore, the Dual Line Box is perfectly suitable for the electrical isolation of active PA components or high-level line sources.

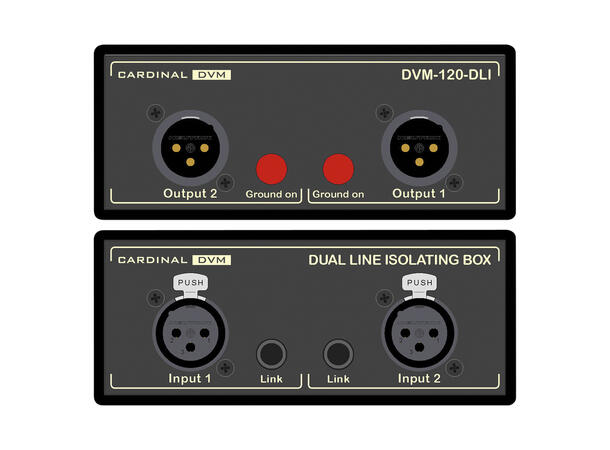

Input signals are fed either via 6.3 mm jack or female XLR sockets. Both channels have separate ground lift switches to disconnect input and output grounds as required. The output signals are on male XLR connectors.
Advantages:
- Uncompromising mechanical design – due to 18 mm recessed front panels, 3 mm thick aluminium profile & inset stacking feet
- Integrated wide-range mains supplies (90 – 240 V) – direct connection via IEC switch/fuse combination
- Developed for highest audiophile requirements
- Exclusive use of high-quality components
Application:
- Super high-grade audio tools and ideal helpers for live and studio applications
Specifications:
| Article number | DVM-120-DLI |
|---|---|
| EAN | 4049371097499 |
| Brand | CARDINAL DVM |
| Type | Dual Line transmitter |
| Weight kg | 1,2 |
| Model | Professional |
| Frequency response | 10 Hz –0,2 dB – 100 kHz –2 dB (Quelle 40 O, Last 2 kO) |
| THD&N | 0,15 % / 20 Hz; 0,003 % / 1 kHz 0,002 % / 20 kHz (bandwidth 80 kHz) |
| Crosstalk | 1 kHz –110 dB / 10 kHz –100 dB |
| Length m | 0,26 |
| Width mm | 120 |
| Height mm | 51 |
| Depth mm | 260 |
| Electrical strength | Primary > secondary 4 kV / winding > core 2 kV |
| Output symmetry | > 65 dB (source < 10 O, Last 600 O) |
| Input symmetry | 100 Hz 100 dB / 1 kHz 90 dB / 20 kHz 70 dB |
