Small, but powerful!

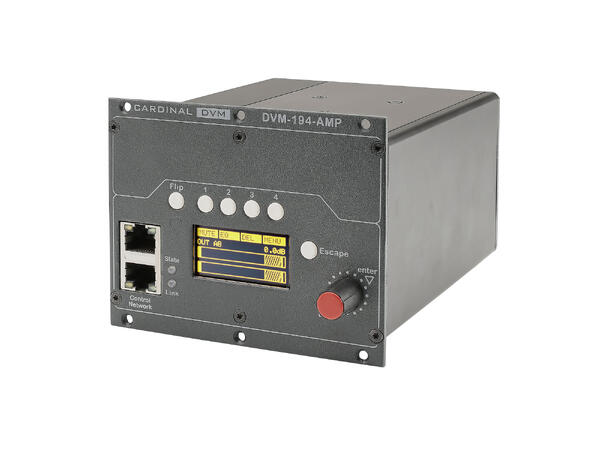

Although less than one litre in volume, our mini high-performance amplifier boasts two channels of 100 watts into 4 ohms each (50 W @ 8 O). Its state-of-the-art class D power blocks with passive cooling make sure that it will always keep a cool head. The DVM-194-AMP has an intuitive menu control incl. a high-resolution display. Moreover, the device is fully remote-controllable (standby/operation, DSP functions) and, via LAN interface, allows to monitor the operation status (temperature, clip etc.). The built-in DSP provides you with an input mixer, 5 fully parametric filters (incl. high- and low-pass function), a delay plus a level control for each output channel.

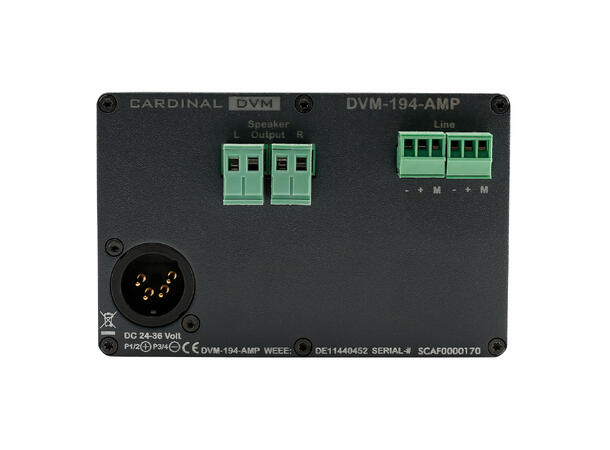

Both channels of the input and output sections are equipped with EUROBLOCK connections. Optionally the 2-channel transformer unit DVM-194-100V is available. The ins and outs are realised via 5.0 mm EUROBLOCK connectors.
The DVM-194-AMP offers the full scope of functions, the DVM-194-AMP-LITE only has level and muting controls as well as the remotecontrolled standby function.
Advantages:
- Perfect integration into the SYSBOXX system – hence connection technology and device in one framework
- Super high-grade components for daily use in the commercial and conference sector
- Intuitve, easy operational concept – very suitable for untrained users
- Ultracompact design ¼-19“ x 2 HE (B x H x T): 106,5 x 84 x 128 mm
- Practical features
Application:
- Schools, auditoriums or public buildings
- Conference technology for all claims
- Studio-/Live application
Specifications:
| Article number | DVM-194-AMP |
|---|---|
| EAN | 4049371097529 |
| Brand | CARDINAL DVM |
| Type | ¼ -19“ amplifier module |
| Model | Conference |
| Width mm | 106,5 |
| Height mm | 84 |
| Depth mm | 132 |
| Height unit HE | 2 |
