Beskrivelse

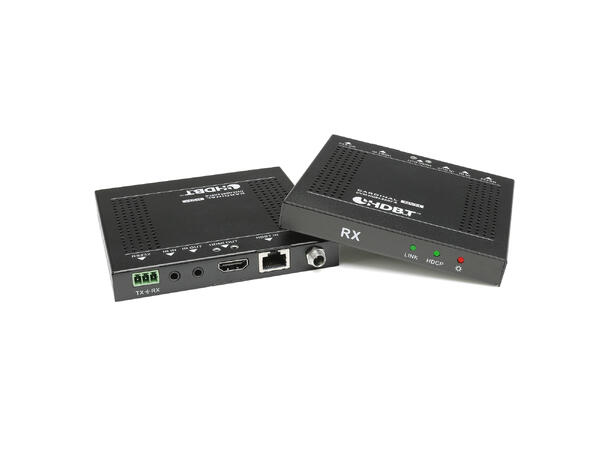

HDBaseT Extender Set HDMI + IR + RS232 up to 70m
-HDBaseT-Transmitter
-HDBaseT-Receiver

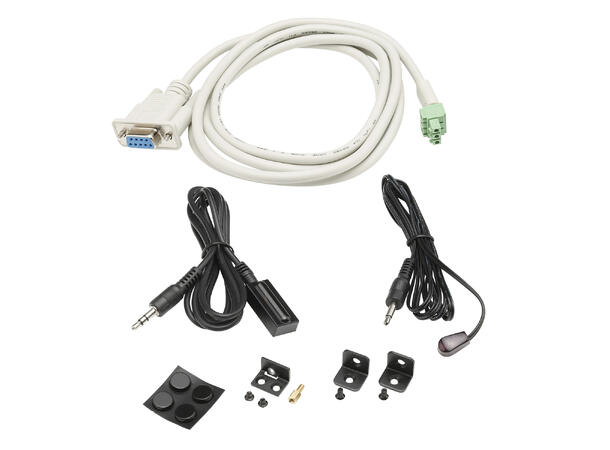

-1x Power Supply 24V
-1x IR-Transmitter
-1x IR-Receiver
-2x RS232 cable adapters
* supports HDMI 2.0b, 18G
* transmits FullHD signals up to 70m/230ft
* transmits UHD signals up to 40m/130ft
* transmits RS232 & IR bidirectional
* supports HDCP (up to V2.2)
* supports official PoH standard – the PSU must be connected to the transmitter!
* supports 3D, 4K@60fps 4:4:4
* recommended cable: CAT.7 AWG23
* ultra compact design
Specifications:
| Article number | DVM-HDBT-EX07-S |
|---|---|
| EAN | 4049371367813 |
| Brand | CARDINAL DVM |
| Type | HD-BaseT-Extender-Set HDMI+IR+RS232 |
| Function | HD-BaseT-Extender-Set |
| Weight kg | 1.034 |
| Supported formats | transmits Full HD signals up to 70m |
| Supported formats | supports HDCP (up to V2.2) |
| Supported formats | transmits UHD signals up to 40m |
| Supported formats | transmits RS232 & IR bidirectionally |
| Supported formats | supports HDMI 2.0b, 18G |
| Supported formats | supports official PoH standard – the PSU must be connected to the transmitter! |
| Width mm | 134 |
| Height mm | 18 |
| Depth mm | 110 |
| Matchcode | DVM-HDBT-EX2 |
