Beskrivelse

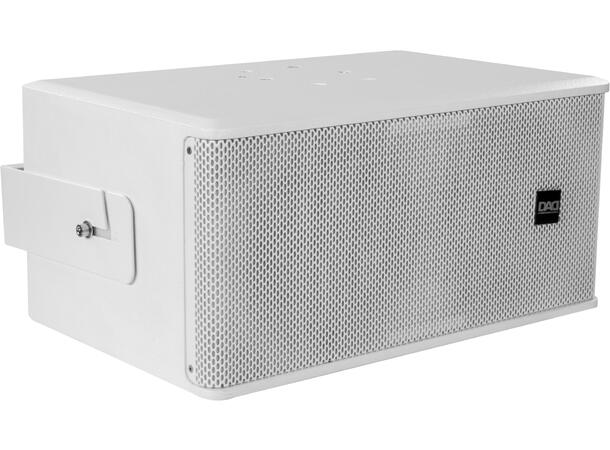

Bass reflex passive subwoofer, 300 W AES, 122dB SPL
Features:
Low frequency: 2×8» woofer/2» v.c.
Frequency response:50-200 Hz (±3dB)
ARK208SP subwoofer speaker is the ideal complement to the full range speakers for reinforcing low notes.
The DAD logo on the grille can be rotated rapidly for the both vertically and horizontally installation.
Birch plywood enclosure.
LOUDSPEAKER
System type: passive subwoofer
COMPONENTS
Low frequency: 2×8» woofer/2»v.c.
FEATURES
AES/program power: 300/600W
SPL max: 122dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
Sensitivity: 95dB @1W/1m (free field)
Impedance: 8 Ohm
SPL cont/peak: 116/122dB @1m (free field)
Frequency response: 50-200Hz (±3dB)
Coverage angle HxV: ° omnidirectional
Suggest LPF range: 120/200Hz
Recommended amplifier up to: 600W /8Ohm
INPUT/OUTPUT CONNECTORS

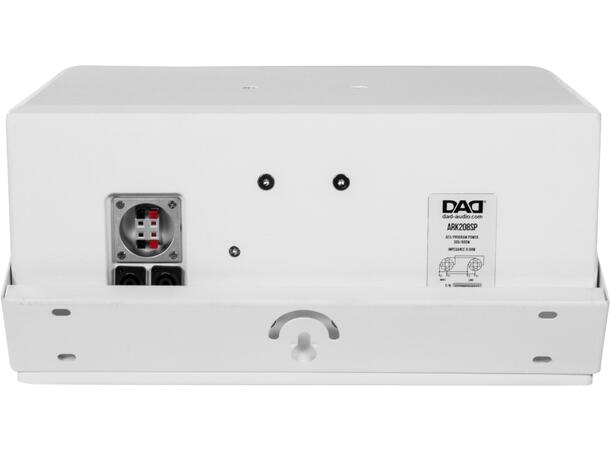

Input signal: 4pole – terminal clamp IN/OUT
CABINET CONSTRUCTION
Cabinet material: 12mm plywood
Sospension system: wall brackets (included)
PHYSICAL
Dimensions (WxHxD): 500x246x325mm
Weight: 13.5kg
