Beskrivelse
Active column loudspeaker, D-class bi-amp, 2-way 350 W+50 W, 124dB SPL
Features:
Low frequency: 2×6» Nd woofer/1.5» v.c.
High frequency: 1» Nd driver / 1.7» v.c.
Frequency response: 80-18000 Hz (±3dB)
Cover angle HxV: 90°x50°

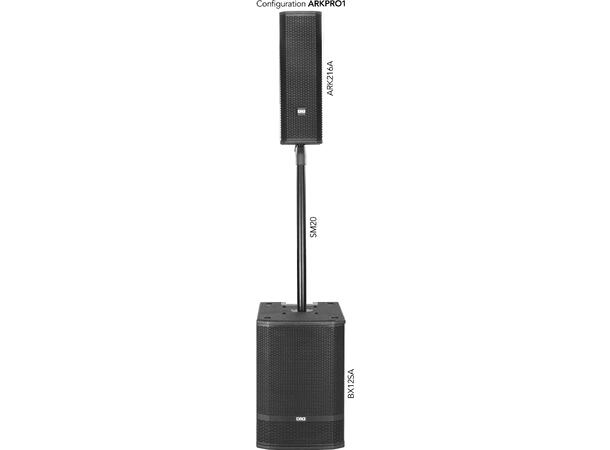

Can be combined with the BX series subwoofers
Optional transport and fixing accessories.
LOUDSPEAKER
System type: 2-way active column module
COMPONENTS

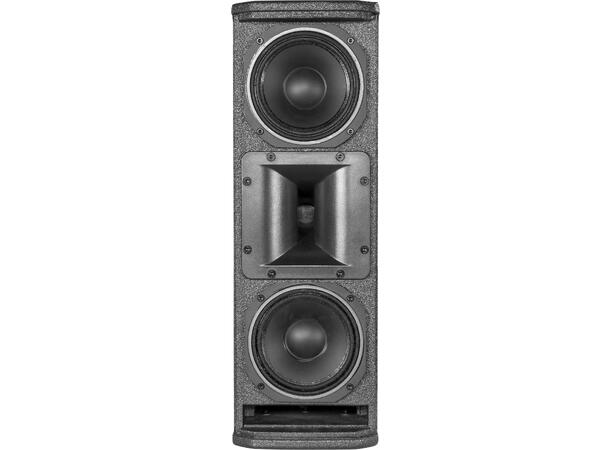

Low frequency: 2×6» neodymium woofer / 1.5» v.c.
High frequency: 1» neodymium driver / 1.7» v.c.
FEATURES
Input: Line – Mic
Built-in amp LF/HF: 350/50W
SPL max: 124dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
SPL cont/peak: 118/124dB @1m (free field)
Frequency response: 80-18000Hz (±3dB)
Coverage angle HxV: 90×50°
Cross over frequency: 1600Hz
Suggest LPF range: 120/150Hz
ELECTRONICS
Amplifier: digital + AB class
Input sensitivity: 4 dBu (1,228Vrms) adjustable
Protection: RMS limiter, fast limiter, temp.
User controls: mic, line, bass boost
Processor: DSP
Operating voltage/frequency: 220 V~240 V/50 Hz

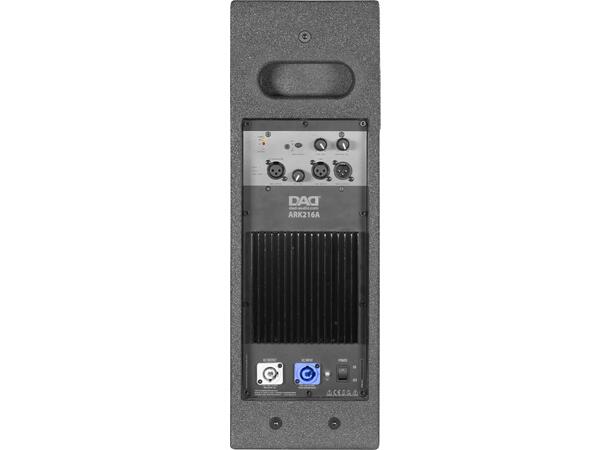

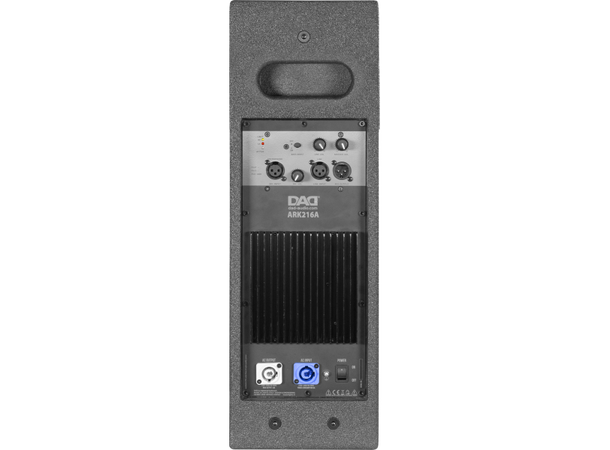

INPUT/OUTPUT CONNECTORS
Input signal: XLR IN/OUT
Power connection: powerCON IN/OUT
CABINET CONSTRUCTION
Cabinet material: 12mm birchplywood
Sospension system: 35 mm mounting pole
Handles: 1 rear
PHYSICAL
Dimensions (WxHxD): 180x550x278mm
Weight: 10.5kg
