Beskrivelse

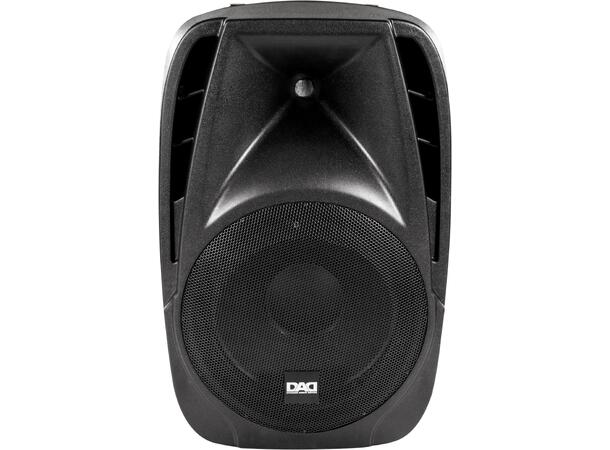

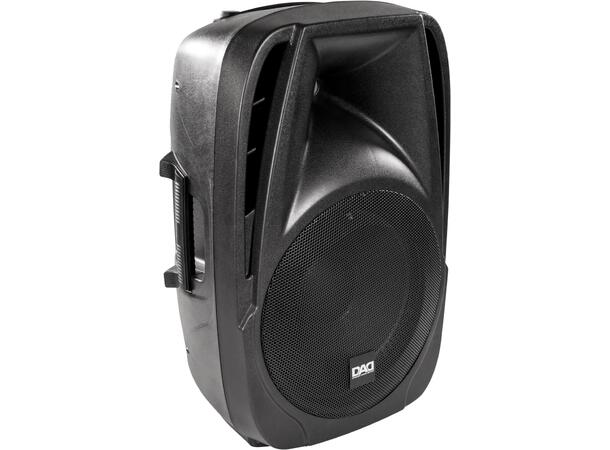

2-way passive loudspeakers, 250 W AES,126dB SPL
Features:
Low frequency: 12» woofer/2»v.c.
High frequency: 1» driver/1.4»v.c.
Frequency response: 60-20000 Hz (±3dB)
Reproduction of voice and music for live and recorded performances
Cabinet designed for stage-monitor applications
Polypropylene box equipped with two side handles, one in the upper side and two wheels for the transport integrated
For portable PA systems, mobile DJ sets and voice/multimedia applications
LOUDSPEAKER
System type: passive 2 way
COMPONENTS
Low frequency: 12» woofer/2»v.c.
High frequency: 1» driver/1.4»v.c.
FEATURES
AES/program power: 250/500W
SPL max: 126dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
Sensitivity: 98dB @1W/1m (free field)
Impedance: 8 Ohm
SPL cont/peak: 120/126dB @1m (free field)
Frequency response: 60-20000Hz (±3dB)
Coverage angle HxV: 90×45°
Cross over frequency: 2500Hz
Protection: H.F. signal compression
Recommended amplifier up to: 500W

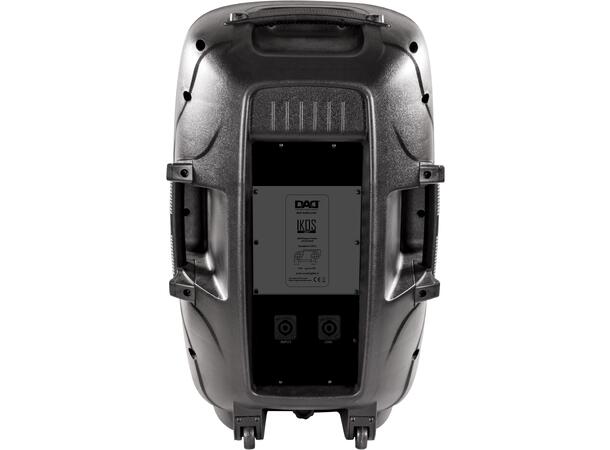

INPUT/OUTPUT CONNECTORS
Input signal: 4pole IN/OUT
CABINET CONSTRUCTION
Cabinet material: 4mm polypropilene
Sospension system: 35 mm mounting pole
Angle: 45° monitor applications
Handles: 2 on side
PHYSICAL
Dimensions (WxHxD): 380x590x315mm
Weight: 9.2kg
