Beskrivelse

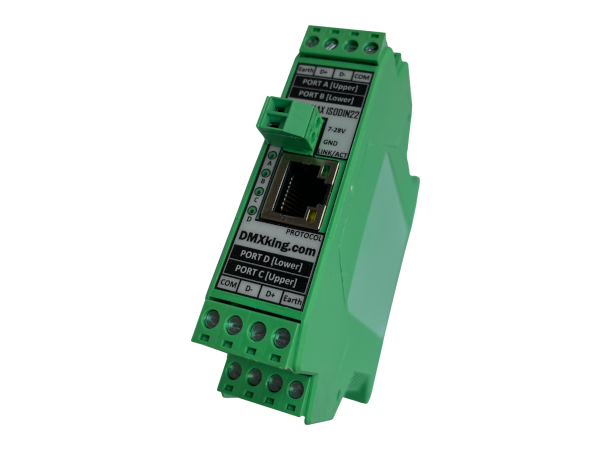

Integrate with DIN rail modules – only 22.5mm wide. Fully protected and isolated DMX512 IN/OUT independently configurable ports with advanced stream merging and built in show recording for standalone operation.
- Wide input power range 7-28Vdc
- DIN rail mount 22.5mm wide
- 4x DMX512 OUT or DMX512 IN isolated ports
- Merge 2 incoming Art-Net streams per output channel with both HTP and LTP options
- Merge Art-Net + DMX input -> DMX output(s)
- Merge 2x DMX input -> DMX output(s)
- sACN Priority takeover for multi-tier controller arrangements
- Recording and playback of shows to microSD card (not supplied) – See eDMX MAX Record / Playback manual
- Static scene recording and playback without requiring SD card. See eDMX MAX Record / Playback manual
- Standalone scene/show playback without computer or network connection
- Real time clock with battery (not supplied) backup for intermittent power standalone playback
- Art-Net I, II, 3 & 4 + sACN/E1.31 protocol support including universe synchronization
- Static or DHCP IPv4 networking
