Beskrivelse

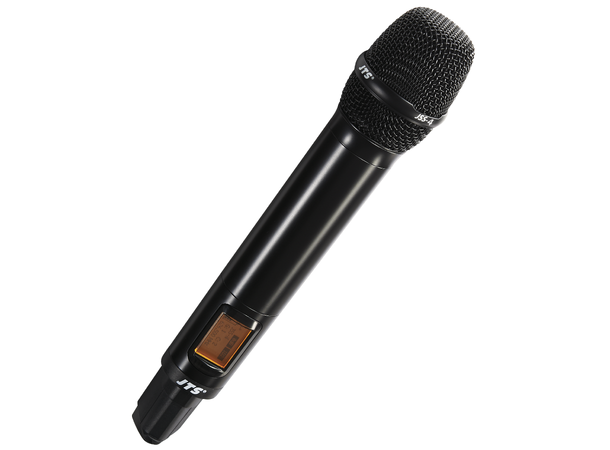

Professional Wideband Handheld Transmitter.
Together with JTS various capsules preferred miking is assured
Features
2400 to 3000 selectable frequencies
Preset 15 groups each of up to 63 compatible channels
Phase-Locked Loop (PLL) synthesized tune
Extended dynamic range and smooth frequency response
Adjustable transmission power between Low and High
The panel Lock-On function prevents tampering and RF interruption
Technical specifications
Frequency Preparation:
PLL Synthesized Control
Carrier Frequency Range: 470~960 MHz
Bandwidth: 108MHz Wideband
RF Outputs: Low / High
Stability: <±10KHz
Frequency Deviation: ±48KHz (Peak)
Chassis: Aluminium alloy
LCD Display: Group, Channel, Frequency,
Battery Status, User Name , GAIN Adjust
Controls: Power ON/OFF, AF Level,
Frequency (Up/Down), Lock-on Mode,
REMOSET ID Pairing, RF Output Adjust
Spurious Emissions: <-50 dBC
Audio Frequency Response: 50Hz~18k Hz
Battery: UM3, AA x2
Dimensions(mm): 50(W) x 253(H) x 35.5(D)
Weight: 350g
Notes: Actual product specifications may
vary depending on region.
