Beskrivelse

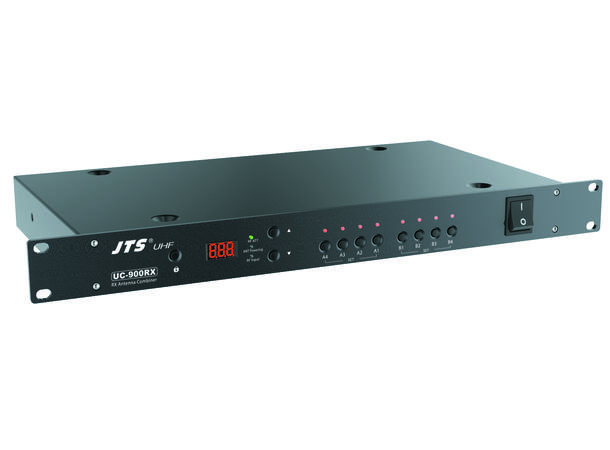

The UC-900RX is designed for receivers. It provides 2 x 4 antenna inputs to minimize RF dead zone on a stage or any venue. It also feature RF input ON/OFF, input attenuation from -31 to 0 dB and input signal ON/OFF control. The UC-900RX makes RF engineers’ job easy.
- Frequency Range: 470~970 Mhz
- Full System Gain: 8dB(±3dB)
- Input Impedance: 50 ohm
- RF Input Power: 0dBm(Max)@Attenuation=0dB
- RF Input Attenuation: -31~0dB (Step:1dB)
- Input/Output Connectors: BNC(F):Input x8 / Output x2
- Functions: 1. Antenna Booster Powering ON/OFF Control, 2. RF Input Attenuation Control, 3. RF Signal ON/OFF Control
- Antenna Booster Power: 12V/200mA*8
- Power Supply: 100~240VAC;MAX2A 50/60Hz
- Dimensions: 480mm(W)*45mm(H)*260mm(D)
