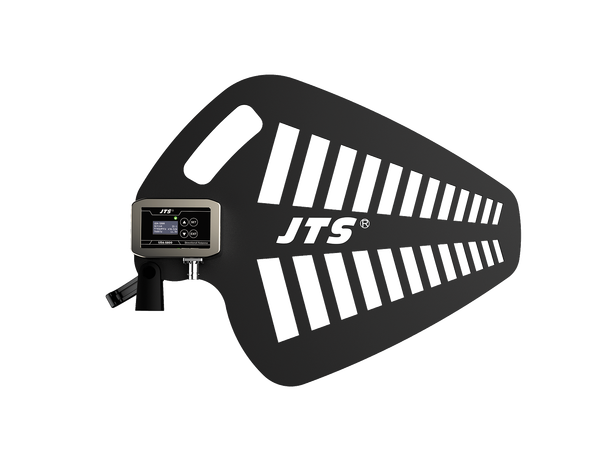

JTS UDA-5800 is a wideband UHF directional antenna designed for clean, focused RF reception. With approximately 7 dBi gain and a 120° beamwidth, it delivers stable performance in demanding wireless environments. A CNC-machined aluminum housing, multi-layer PCB, and front LCD display ensure reliability, EMI protection, and fast, intuitive setup.
SPECIFICATIONS
| UDA-5800 |
| Gain | 7dBi |
| 3-dB beam-width | horizontal plane 120° – vertical plane 90° |
| Band | Band Width :60MHz / Step: 10MHz Lo Band : 470-710MHz ; Hi Band : 720-960MHz (Filter Option) |
| Bandwidth | 450~1000 MHz(Bypass Mode) 470~960MHz (Active Mode) |
| Control | Display menu or remote thru coaxial cable |
| Gain | -15 ~ +27 dB typical (1 dB step selection) |
| Bandwidth | 470-1000 MHz |
| Gain flatness | +/-1 dB |
| Powering | +12 Vdc/55mA (Green led:0 ~ +13dB; Blue led: -13 ~ -1dB) +12 Vdc/110mA (Red led:+14 ~ +27dB) Orange led: Bypass |
| Operating voltage range | 10~15Vdc |
| Dimensions | 282.5mm(W)*384.5mm(H) |
