Beskrivelse
Features

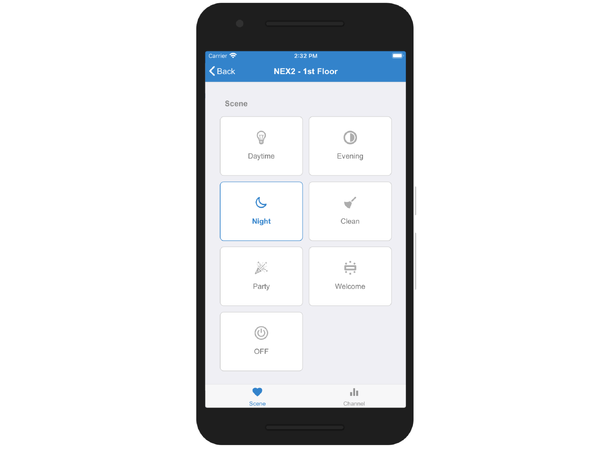

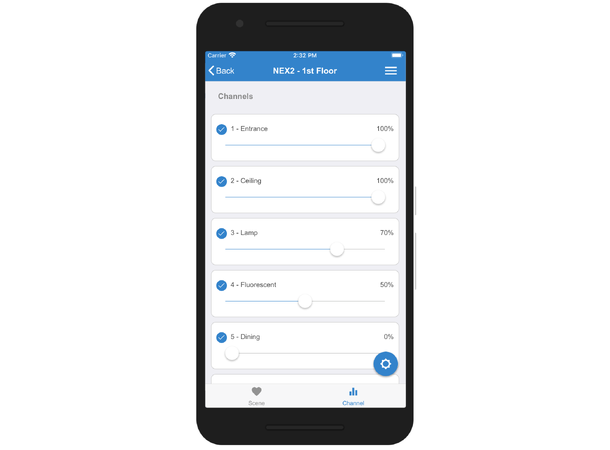

Programmable and controllable by NEX Lighting II GUI
128 zones. Each zone can store up to 16 scenes
Up to 512 channels (DMX-512 output), compatible to DMX-512 devices
8 programmable dry contact inputs
Connectable to ECP scene control panel
Built-in timer and astronomical timer
Specifications
Power Input: AC 100-240V
Protocol: DMX-512/ EDX/ NEX
Signal connector: 4-pin terminal/ RJ-12
Dimension: 234(W) x 90 (H) x 62 (D)mm
Weight: 620
