Beskrivelse

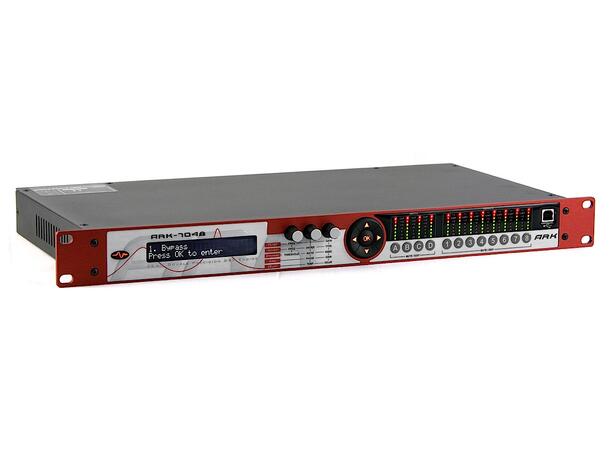

Multi process controller with 56 bit DSP engine.
70m delay / 4 in puts and 8 outputs / RMS & Peak limiting / 0.6ms fixed latency
Inputs / Outputs 4 / 8
Dynamic Range 120 dB
THD 0,0018%
GEQ / PEQ Input 29 band / 29 filters per input
PEQ Output 9 per way
PEQ filter type Parametric, High and Low Shelving, High-pass and Low-pass, Band-pass, Reject band and All-pass
Crossover Linkwitz Riley, Butterworth and Bessel up to 48 dB/oct
Input delay 212 ms (channels A & B) 54.15 ms (ch.C & D)
Output delay 20.8 ms
Limiter – Compressor Double dynamics per output (RMS & PEAK)
Noise gate Per output
Gain / Mute Per input / output
Phase Inversion Per input / output
Signal generator Tone, Pink noise, White noise
Latency 0.6 ms
DSP internal process 56 bit
Communication USB, Ethernet
LCD display 24 x 2
Optional Digital Inputs & Outputs AES/EBU. EtherSound
Other features Air absorption atmospheric compensation. Speaker data import. Export & Import EQ files and Rainbow software
Dimensions 45 x 482 x 226 mm
Weight 3 Kg
