Beskrivelse

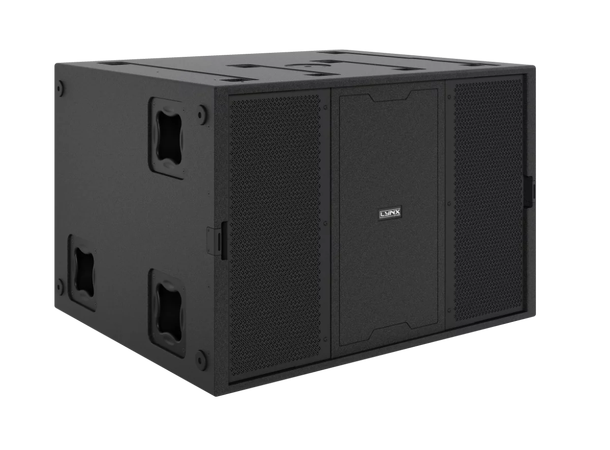

CPS-18S is a compact & extremely powerful, self-powered (3000W Class-D with PFC), DSP integrated subwoofer unit in 6th order band pass configuration. 18″ (4″ voice coil). Max SPL 138 dB.
- Extraordinary power-to-size ratio
- Integrated Digital Processing
- 18″ neodymium transducer
- Integrated Digital Processor (64 bit / 96KHz)
- FIR linear phase filtering
- Ergonomic design in premium birch plywood & finished in polyurea
- Band pass configuration
- 2.8″ IPS display with multifunction joystick control
Technical Data
Components | |
LF: | 1 x 18″ (4″ QUATTRO in/out copper voice coil), waterproof cone with treatment for both sides |
Frequency range | 35 Hz – 100 Hz (-6dB) |
Coverage | QUASI omnidirectional |
Max SPL | 132 dB / 138 dB |
Power amplifier | 3000 W Class D with switching power supply & PFC |
Processing | Internal Lynx Processor DSPB-FL. 96 KHz / 64 bit double-precision, DSP with FIR filter linear phase High performance 32 bit 96 KHz AD/DA converters 120 dB |
Configuration | 6th Order Band Pass Subwoofer |
Control | User control interface with 2.8″ IPS screen and multifunction joystick controller |
Control connections | USB (DSP programming) / Dual Ethernet port |
Input | BAL/UNBAL XLR connectors analog input AES/EBU digital input optional |
Nominal voltage | 100 – 240V AC @ 50-60 Hz |
Operating voltage | 85 – 264V AC |
AC Connectors | 16A Neutrik powerCON TRUE1 TOP with looping output |
Finish | Polyurea coating, high grade resistant paint |
Material | 15 mm Premium birch plywood |
Dimensions | 600 x 900 x 750 mm (H x W x D) |
Weight | 62 Kg (136.6 lbs) |
