Beskrivelse

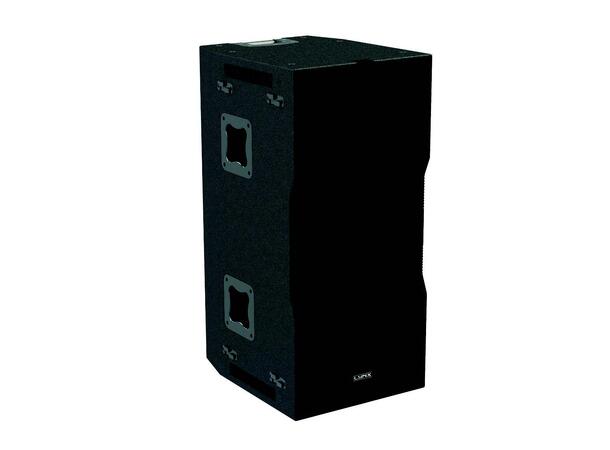

Extremely compact & powerful 3-way, self-powered (6000 W Class-D with PFC), DSP integrated coaxial point source element. Dual high power 14” neodymium transducers and a unique 2” Exit throat (HF 1.75” voice coil/ MF 3.5” voice coil) coaxial neodymium compression driver.
- Extraordinary power-to-size ratio
- Three way active system
- Unique 2” dual diaphragm compression driver
- Integrated Digital Processor (64 bit / 96KHz)
- FIR linear phase filtering
- Ergonomic design in premium birch plywood & finished in polyurea
- 2.8” IPS display with multifunction joystick control
Technical Data
Components | |
LF: | LF: 2 x 14″ (4″ voice coil), neodymium magnet, 200W (AES). |
MF/HF: | MF: 3.5″ (90mm) voice coil, 150W (AES). HF: 1.5″ (44,4 mm) voice coil, 80W (AES) |
Frequency range | 55 Hz – 22 KHz (-6dB) |
Coverage | Rotatable 60ºH x 40ºV |
Max SPL | Low: 137 dB / 143 dB – Mid/High: 139,5 dB / 142,6 dB |
Power amplifier | 6000 W Class D with switching power supply & PFC Amp: 3000 W @4 Ohm MF/HF Amp: 3000 W @4 Ohm |
Processing | Internal Lynx Processor DSPB-FL. 96 KHz / 64 bit double-precision, DSP with FIR filter linear phase |
Crossover | Digital: FIR filter 550 Hz / Passive: 6.3 KHz |
Control | User control interface with 2.8″ IPS screen and multifunction joystick controller |
Control connections | USB (DSP programming) / Dual Ethernet port |
Input | BAL/UNBAL XLR connectors analog input AES/EBU digital input optional |
Nominal voltage | 100 – 240V AC @ 50-60 Hz |
Operating voltage | 85 – 264V AC |
AC Connectors | 16A Neutrik powerCON TRUE1 TOP with looping output |
Finish | Polyurea coating, high grade resistant paint |
Material | 15 mm Premium birch plywood |
Dimensions | 900 x 420 x 515 mm (H x W x D) |
Weight | 49 Kg (108 lbs) |
