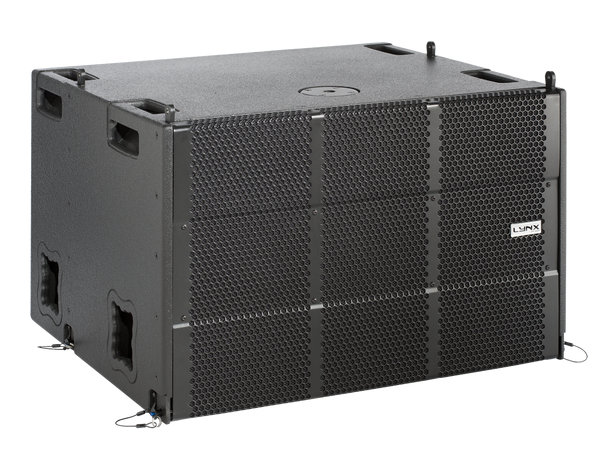

The GXR-D15A is part of the GXR line Array system. This subwoofer is designed to be flown or stacked in perfect combination with the line array unit GXR-LA10A being the ideal solution for install projects and live events where a compact line array is required.
The GXR-D15A is a bi-amplified class D enclosure that delivers high power levels from a very compact format offering two speakers of 15″ (4″coil). This cabinet offers a very easy to use rigging hardware, quick and reliable.
The GXR-D15A has a selection of accessories available: Flying frame, transport dolly, nylon protection cover, rain hood, etc.
This system is very easy to use and control without the need for any external amps. When extreme low frequencies are required, GXR-D18A is recommended.
| Specifications | |
| Components | LF: 2 x 15”, 4” voice coil, neodymium magnetic assembly |
| Frequency Range | 30 Hz – 140 KHz (-10dB) processed |
| Frequency Response | 35 Hz – 125 KHz (± 3dB) processed |
| Max. SPL | 134dB |
| Coverage Angle | Omnidirectional |
| Power | 2400 W Class D with switching power supply & PFC |
| LF Amplifier | 2 x 1200 W |
| Processing | 96 KHz / 56 bit double precision DSP |
| Control | User control interface with LCD |
| Control connections | USB / Ethernet (OCS) optional |
| AC Power | 90 – 264V. 50/60 Hz with PFC |
| AC Connections | 16A Neutrik powerCon TRUE1 with looping output |
| Finish | High resistant water-based black paint |
| Material | 18mm Premium birch plywood |
| Dimensions | 505 x 790 x 690 mm (H x W x D) |
| Weight | 48 Kg (105 lbs) |
