Beskrivelse

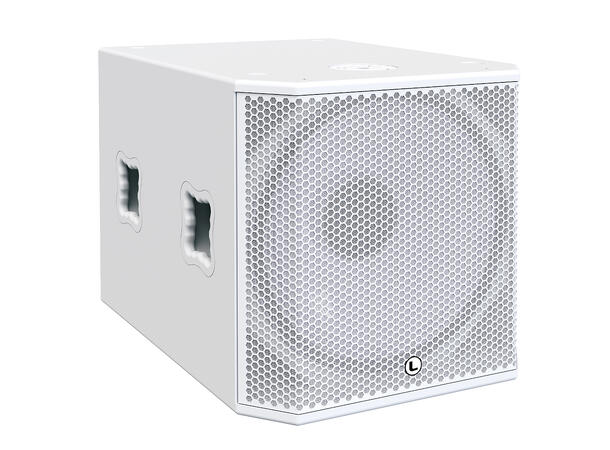

Ultra-compact, self powered (class D switch mode power supply with PFC), omni-directional sub bass cabinet.
| Specifications | |
| Components | 1 x 18? speaker with 3? voice coil |
| Frequency range | 38 Hz – 250 Hz (-10dB) |
| Frequency Response | 42 Hz – 250 Hz (± 3dB) |
| Max. SPL | 132 dB |
| Coverage Angle | Omnidirectional |
| Power | 2800 W Class D with switching power supply & PFC |
| LF Amplifier | 1 x 1400 W |
| Speaker Output Amplifier | 1 x 1400 W @ 8 Ohms / 2 x 700W @ 4 Ohms |
| Processing | 96 KHz / 64 bit double precision DSP . |
| Control | User control interface with LCD |
| Control Connections | Ethernet (OCS) optional / USB (DSP programming) |
| AC Power | 85 – 270V. 50/60 Hz with PFC |
| AC Connections | 16A Neutrik powerCon TRUE1 with looping output |
| Finish | High resistant water-based paint |
| Material | 15mm Premium birch plywood |
| Dimensions (H x W x D) | 508 x 505 x 704 mm |
| Weight | 37 Kg (81.5 lbs) |
