Beskrivelse

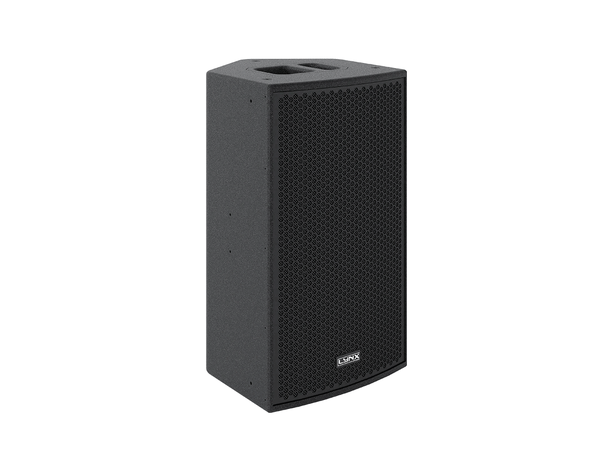

The LAIA-12 enclosure is a medium format, multi purpose, point source cabinet that offers an ideal solution for a wide variety of indoor and outdoor applications, both in fixed installations and/or touring. Thanks to the cabinet’s design, it can be used as a stage monitor. LAIA-12 is a self-powered 2-way system with a total of 1200W in class D, universal switching power supply.
Equipped with a powerful next-generation 64-bit/96KHz DSP designed and manufactured by Lynx Pro Audio, it offers the most recent advances in digital processing, such as FIR filters, which offer linear frequency and phase response. The latest 32-bit/96KHZ AD/DA converters make the system one of the most advanced and innovative point source on the market, resulting in superior sound quality. Additionally, LAIA series systems can be controlled remotely using the OCS control platform, giving the user the ability to control the systems without the need for external processors.
Key features
- Class D Powered (bi-amplified)
- Integrated Digital Processing
- Internal temperature control
- Electronic protection
- FIR linear phase filtering
- Online monitoring available
- Two way active system
Technical Data
Components: LF: 12”, 3” voice coil, waterproof treatment for both sides
HF: 1 x 1” exit throat 1.75” voice coil
Frequency Range: 65 Hz – 20 KHz (-10 dB)
Frequency response: 75 Hz – 18 KHz (± 3dB)
Max SPL: 126 dB / 132 dB Peak*
Coverage: 90º H x 60 º V
Power: 1200 W Class D (2400 W peak) with switching power supply
LF amplifier: 1 x 800 W, 1600 W peak
HF amplifier: 1 x 400 W, 800 W peak
DSP Processing: 96 KHz / 64 bit double-precision

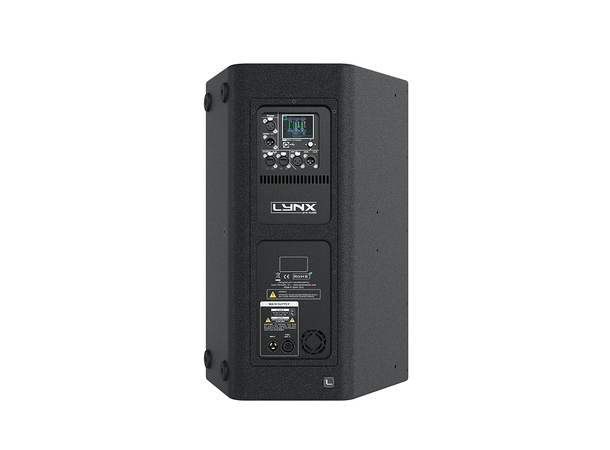

Control: User control interface with 2.8” IPS screen and multifunction joystick controller
Control connections: USB (DSP programming) / Dual Ethernet port
Input: Analog BAL/UNBAL XLR, Digital AES/EBU (Optional)
AC power: 90 – 264V. 50/60 Hz
AC connections: 16A Neutrik powerCon true1 TOP with looping output
Finish: Polyurea coating, high grade resistant paint
Material: 15 mm premium birch plywood
Dimensions: 645 x 370 x 379mm (H x W x D)
Weight: 25 Kg (55.12 lbs)
