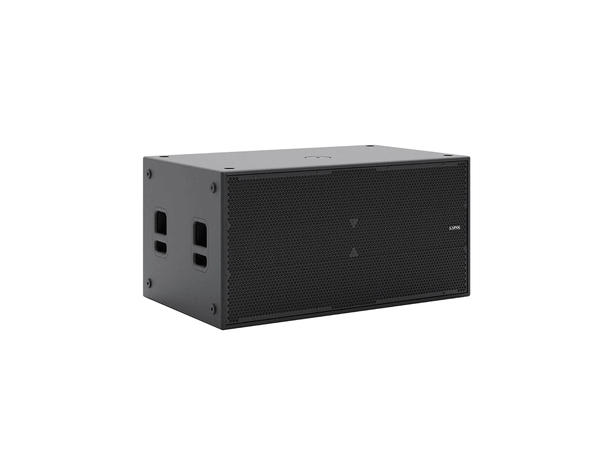

The LAIA-218S is a high-performance, self-powered subwoofer from Lynx Pro Audio, featuring 2×18» speakers with 4” voice coils and a powerful 4000 W Class D amplifier with PFC for optimal efficiency. It delivers an impressive maximum SPL of 136 dB/142 dB Peakand a frequency response of 35 Hz-100 Hz (±3 dB). This system incorporates a powerful, next-generation 96 KHz / 64-bit double-precision DSP designed by Lynx Pro Audio, which, along with 32-bit/96KHZ AD/DA converters, results in superior sound quality.
The robust enclosure is made from 18 mm Premium birch plywood and finished with a durable Polyurea coating for long life and weather protection. Control is available through a user interface with a 2.8» IPS screen, and the system can be remotely monitored and controlled via the OCS control platform using the dual Ethernet port.
Key features
- Class D Powered (bi-amplified)
- Integrated Digital Processing
- Internal temperature control
- Electronic protection
- FIR linear phase filtering
- Online monitoring available
- Two way active system
Technical Data
Components: LF: 2 x 18”, 4” voice coil
Frequency Range: 30 Hz – 120 Hz (-10 dB)
Frequency response: 35 Hz – 100 Hz (± 3dB)
Max SPL: 136 dB / 142 dB Peak
Coverage: Omnidirectional
Power: 4000 W Class D with switching power supply & PFC, 2 x 2000 W
DSP Processing: 96 KHz / 64 bit double-precision

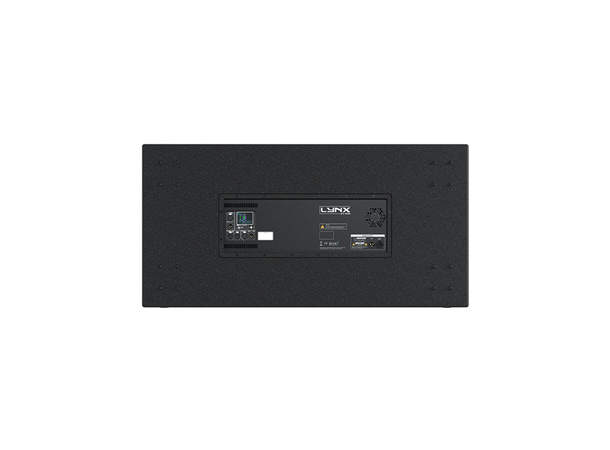

Control: User control interface with 2.8” IPS screen and multifunction joystick controller
Control connections: USB (DSP programming) / Dual Ethernet port
Input: Analog BAL/UNBAL XLR, Digital AES/EBU (Optional)
AC power: 90 – 264V. 50/60 Hz with PFC
AC connections: 16A Neutrik powerCon true1 TOP with looping output
Finish: Polyurea coating, high grade resistant paint
Material: 18 mm Premium birch plywood
Dimensions: 600 x 1200 x 725 mm (H x W x D)
Weight: 98 Kg
