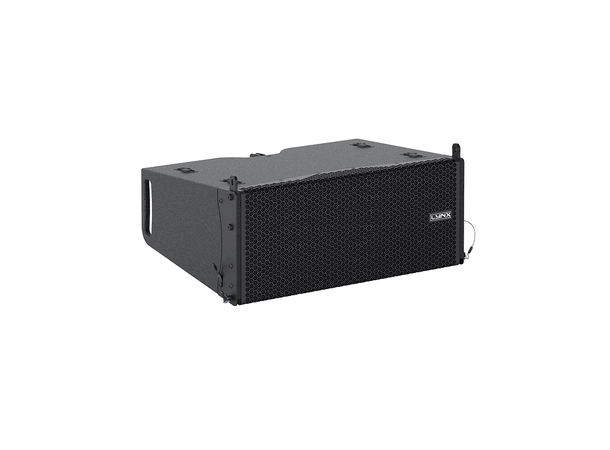

The LAIA-28 from Lynx Pro Audio is a high-output, self-powered (Class D bi-amplified) medium-format line array module, delivering a total of 1200W of power. It is equipped with advanced features including an integrated switching power supply with PFC (Power Factor Correction) and a powerful 64-bit/96KHz DSP. The digital processing utilizes FIR linear phase filtering for superior sound quality and linear frequency and phase response. The acoustic elements consist of two 8» LF transducers (2? voice coil) and a 1×1.4» exit throat HF driver (3? voice coil). This system provides a precise coverage of 100ºH×10ºV and can achieve a maximum SPL of 136 dB Peak.
The array is constructed from 15 mm Premium birch plywood with a Polyurea coating. Designed for a wide variety of applications, the LAIA-28 is an ideal solution for outdoor events, theatres, large stadiums/arenas, auditoriums, and houses of worship. Furthermore, the system offers online monitoring and can be controlled remotely using the OCS control platform via its Dual Ethernet port.
Key features
- Class D Powered (bi-amplified)
- Integrated Digital Processing
- Internal temperature control
- Electronic protection
- FIR linear phase filtering
- Online monitoring available
- Two way active system
Technical Data
Components: LF: 2 x 8”, 2” voice coil, Tetracoil ultra linear motor
HF: 1 x 1.4” exit throat, (3” voice coil) with titanium diaphragm
Frequency Range: 65 Hz – 20 KHz (-10 dB)
Frequency response: 75 Hz – 18 KHz (± 3dB)
Max SPL: 130 dB / 136 dB Peak
Coverage: 100º H x 10 º V
Power: 1200 W Class D with switching power supply & PFC LF amplifier: 1 x 800 W RMS, 1600 W peak HF amplifier: 1 x 400 W RMS, 800 W peak
DSP Processing: 96 KHz / 64 bit double-precision

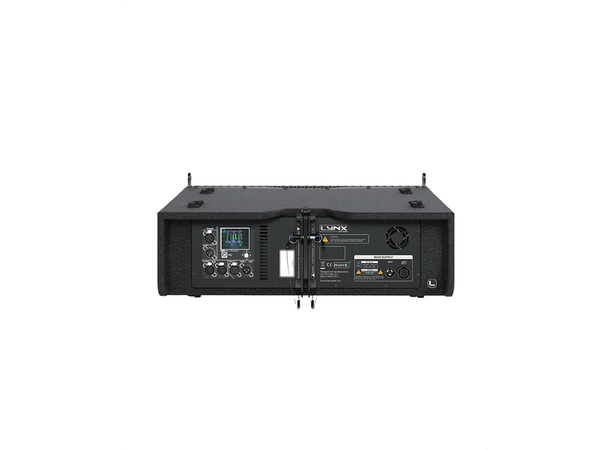

Control: User control interface with 2.8” IPS screen and multifunction joystick controller
Control connections: USB (DSP programming) / Dual Ethernet port
Input: Analog BAL/UNBAL XLR, Digital AES/EBU (Optional)
AC power: 90 – 264V. 50/60 Hz with PFC
AC connections: 16A Neutrik powerCon true1 TOP with looping output
Finish: Polyurea coating, high grade resistant paint
Material: 15 mm premium birch plywood
Dimensions: 247 x 600 x 444 mm (H x W x D) without pins
Weight: 25 Kg (55.12 lbs)
