Beskrivelse

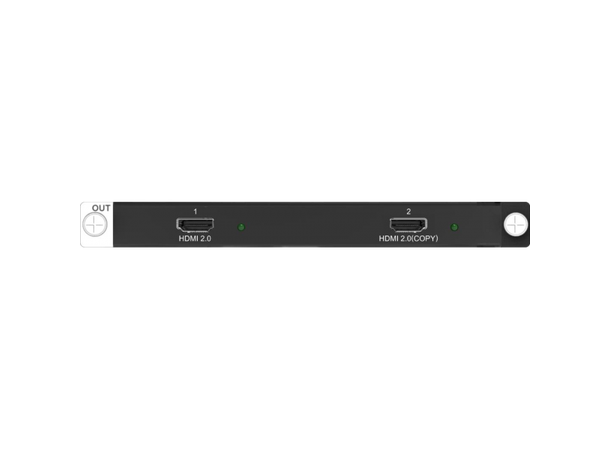

Novastar output card for NOVAH, 1xHDMI 2.0.
2x HDMI 2.0
- Connector 2 copies the output on connector 1.
- The connector supports the maximum resolution of 8192×1080@60Hz/4096×2160@60Hz.
- Custom resolutions:
– Max. width: 8192 pixels (8192×1146@60Hz)
– Max. height: 7680 pixels (1092×7680@60Hz) - Supports 8-bit or 10-bit RGB 4:4:4/YCbCr 4:4:4/YCbCr 4:2:2 output.
- Status LEDs:
– On: The output connector is connected normally.
– Off: The output connector is not connected.
