Beskrivelse

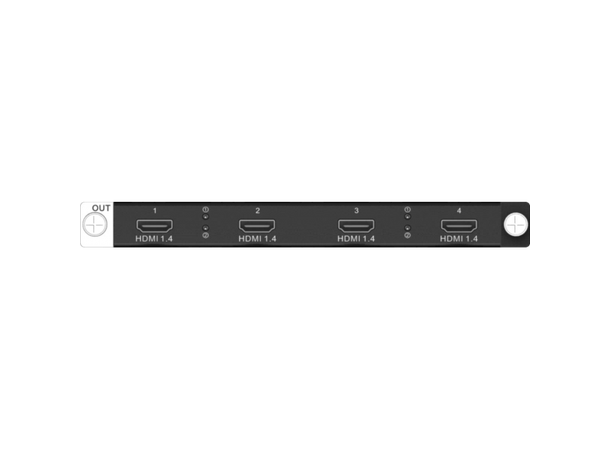

Novastar output card for NOVAH, 4xHDMI 1.4.
4x HDMI 1.4
Support for single output and dual link output
Single link output:
- Four connectors are all available for output.
- Each connector supports the maximum resolution of 2048×1152@60Hz.
- Custom resolutions:
– Max. width: 2560 pixels (2560×972@60Hz)
– Max. height: 2560 pixels (884×2560@60Hz) - Supports 8-bit RGB 4:4:4/YCbCr 4:4:4/YCbCr 4:2:2 output.
- Supports 10-bit RGB 4:4:4/YCbCr 4:4:4 output.
Dual link output:
- Connectors 2 and 4 are available for output.
- Connector 1 copies the output on connector 2, and connector 3 copiesthe output on connector 4.
- Each connector supports the maximum resolution of 4096×2160@30Hz/3840×1080@60Hz.
- Custom resolutions:
– Max. width: 4096 pixels (4096×1124@60Hz)
– Max. height: 4096 pixels (1014×4096@60Hz) - Supports 8-bit RGB 4:4:4/YCbCr 4:4:4/YCbCr 4:2:2 output.
- Supports 10-bit RGB 4:4:4/YCbCr 4:4:4 output.
- Status LEDs:
– On: The output connector is connected normally.
– Off: The output connector is not connected.
