Beskrivelse
NB! STRØMKABEL LEVERES UTEN STØPSEL, SE TILBEHØR FOR ALTERNATIVER

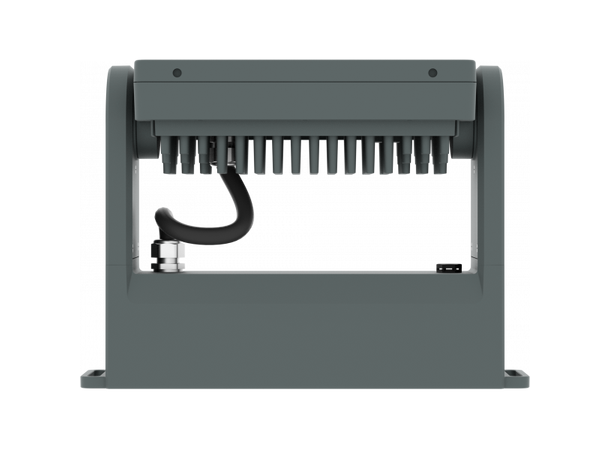

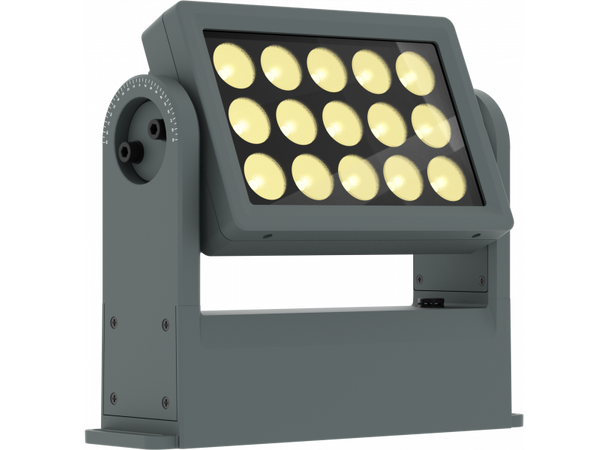

ArcPod 15VW is a compact exterior wash fixture, featuring high-intensity light despite its small size. The unit is equipped with 15x10W VW LEDs, delivering an exceptional output over than 15’000 lumens and a wide gamut of colours and whites. The slim sizing, as well as the wide range of available optics, makes the ArcPod 15VW an incredibly flexible architectural fixture to complement the bigger versions in large outdoor installs as accent light or for smaller-sized projects.
Features:
Tilt adjustment and multiple lens options for fine focusing
15x10W VW LEDs
Compact form factor and fan-free design
LIGHT SOURCE
- Source: 15x10W Warm White + Cold White LEDs
- Luminous flux: (15°) 8’884 lm; (15°+20°) 7’811 lm; (15°+30°) 7’846 lm; (15°+40°) 7’935 lm; (15°+60°) 7’902 lm; (15°+80°) 7’937 lm; (15°+10°x60°) 15’410 lm; (15°+30°x60°) 8667lm @full
- Lux: (15°) 7’769 lx; (15°+20°) 1’360 lx; (15°+30°) 822 lx: (15°+40°) 409 lx; (15°+60°) 292 lx; (15°+80°) 205 lx; (15°+10°x60°) 1’126 lx; (15°+30°x60°) 517lx @5 m full
- CRI: 81,3 @ WW; 83.9 @ CW; 86.5 @ full
- Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
- Beam angle: 10°
- Field angle: 20°
- Lens diameter: 36mm
- Additional optics: see available accessories
COLOUR SYSTEM
- Colour mixing: tunable white
- CCT: CCT control through dedicated DMX channel
- White presets: 2.700 K ~ 6.500K
- Colour wheel: virtual colour wheel with presets
- Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
- Static mode: selection of static colour
BODY
- Tilt angle: 0 – 130° with manual regulation
- Body: sturdy die-cast aluminium body
- Body colour: RAL 7012
CONTROL
- Protocols: DMX512, RDM
- DMX channels: 1 / 2 / 3 / 5 / 11channel
- RDM: RDM for remote monitoring and settings
- Display: user interface through DATAMASTER external coder (not included)
- Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included
- Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Strobe / shutter: 1 ~ 30 Hz, electronic
- Operating temperature: -20° C / +45° C (-4° F / +113° F)
- LED Control: flicker free frequency with adjustable PWM
- Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
- Mains power supply: 100-240V – 50/60Hz
- Max power consumption: 145W
- Output (at 230V): 14 units on a single power line
- Power factor: >0,97
PHYSICAL
- IP rating: 66 for outdoor installations
- IK rating: 08
- Cooling: passive cooling and fan-free
- Adaptors: XLR and BARE END 16A adaptors included
- Signal connection: moulded IP signal IN/OUT connectors
- Power connection: moulded IP power IN/OUT connectors
- Dimensions (WxHxD): 307x259x83mm
- Weight: 6,3kg
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT
- 1 x ARCPOD15VW
- 1 x BARE END – IP connection adapter
- 1 x 5p XLR – IP connection male adapter
- 1 x 5p XLR – IP connection female adapter
- User Manual
