Beskrivelse
NB! STRØMKABEL LEVERES UTEN STØPSEL. SE TILBEHØR FOR ALTERNATIVER
NB! Demovare. Kontakt oss for mer info.

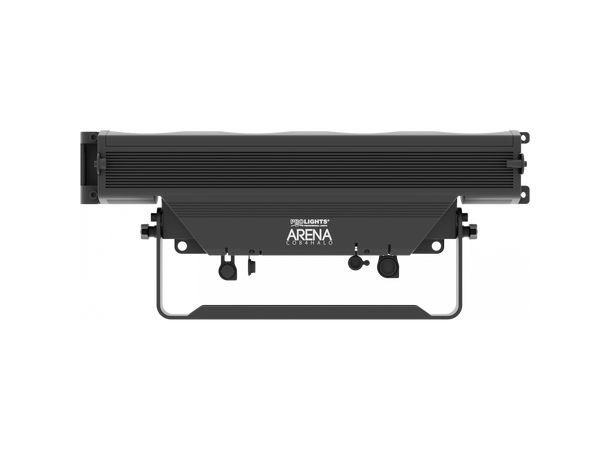

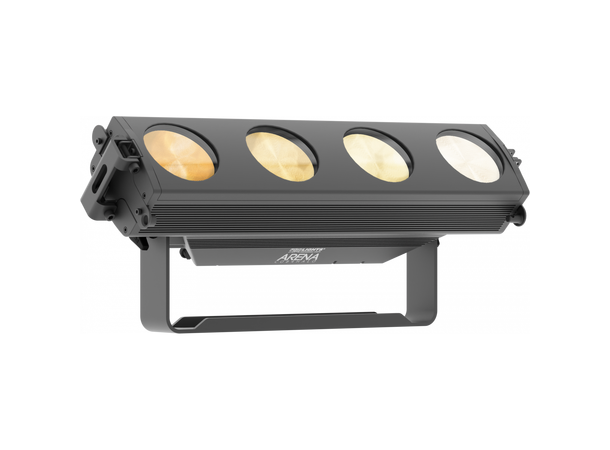

ARENACOB4HALO is a proper LED version of an «old school» 4 cell DWE Blinder.
Its 4 LED Pods not only deliver the punch needed for a blinder at full, but also feature an amber glow for the low level warmth synonymous with a tungsten blinder.
With an IP54 housing, magnetic lens options, individual control of each LED cell, clever rigging system and cell spacing that matches a standard blinder the ARENACOB4 is not only powerful but also unbelievably flexible.
Features:
4x 72W 3000K LED COB pods with Amber glow
CRI >92
Magnetic lens: optional 40°, included 24°

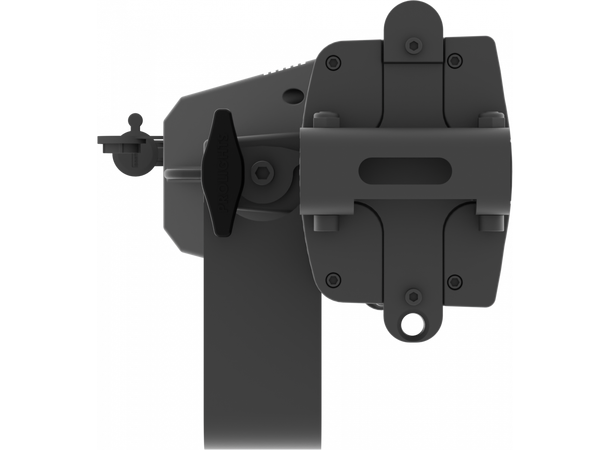

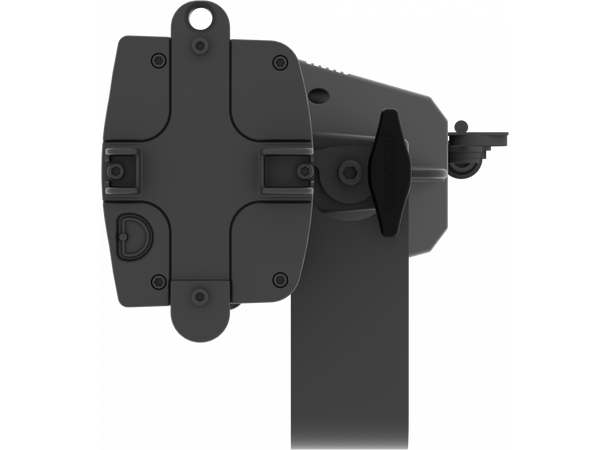

Modular rigging system
Same cell spacing and lens diameter as a traditional blinder
IP54 rating with noiseless passive cooling
Inbuilt effects generator
LIGHT SOURCE
- Source: White COB 4x72W + Amber 16x3W
- Temperature: 3000K
- CRI: >92Ra
- Luminous Flux: 14386lm
- Lux: (24°) 6330lux @3m
- Lux: without lens (32°) 3364lux @3m
- Source Life Expectancy: >50.000 h
OPTICS
- Beam Angle: (inc) 24° – (opt) 40°
- Field Angle: 42°
- Pixel pitch: 150mm
- Lens Diameter: 100mm
- Lens Type: Dichroic parabolic reflector in combination with HD fresnel lens
- Additional Optics: 40°(opt), 32° without magnetic lens
- Other: Magnetic replacement of front lens
COLOR SYSTEM
- Color Mixing: Tungsten 3000+ambershift
- CTC: Amber-shift activation by DMX
DYNAMIC EFFECTS
- Pixel Patterns: Preprogrammed dynamic and static patterns
- FX Generator: Adjustable foreground/background color, index, speed, direction
- Static Color Mode: Selection of static color
- Manual Color Mode: Manual adjustment of dimmer and strobe
- Auto Mode: Built-in programs with execution speed adjustment
- Special Features: Amber shifting for halogen DWE emulation
BODY

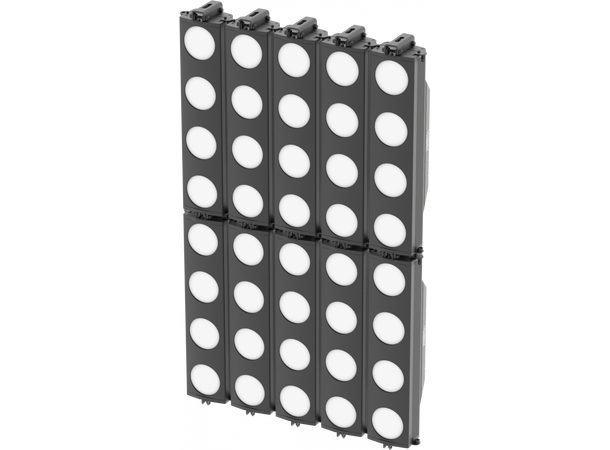

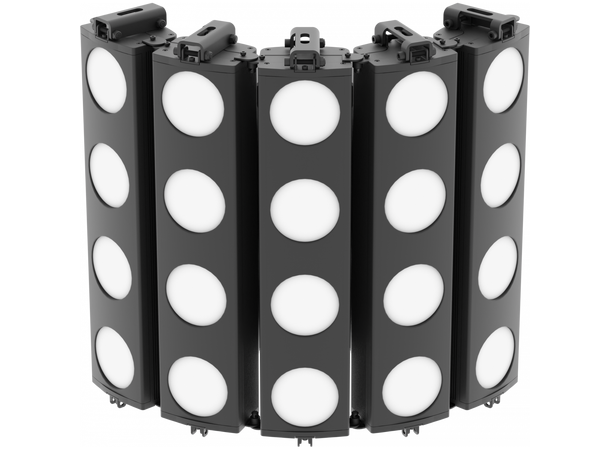

- Hardware On-board: On board mechanics for modular assembly of multiple panels
- Body: Sturdy die-cast aluminium body conceived for long-time durability
- Body Color: Black
CONTROL
- Protocols: DMX512, RDM
- Dmx Channels: HALO 1/4ch – STD 2/4/7ch – EXT 6/8/10ch
- Pixel Control: Pixel2Pixel control
- RDM: RDM ready for fixture remote monitor and settings
- Display: Black OLED touch display
- Firmware Upgrade: Yes, via USB-DMX interface (UPBOX1) not included
- Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
- Dimmer: Linear 0~100% electronic dimmer
- Dimmer Curves: 4 Different dimming curves available
- Strobe/Shutter: 1-28 Hz, electronic
- Battery Backup: Battery backup for user operation without connecting to the main power
- Operating Temperature: -10° / 45°
- Flicker: Flicker free operation
ELECTRICAL
- Power Supply: 100-240V – 50/60Hz
- Power Consumption (at 230V): 341W
- Power Consumption (at 120V): 350W
- Output (at 230V): 11 units on a single power line
- Output (at 120V): 5 units on a single power line
PHYSICAL

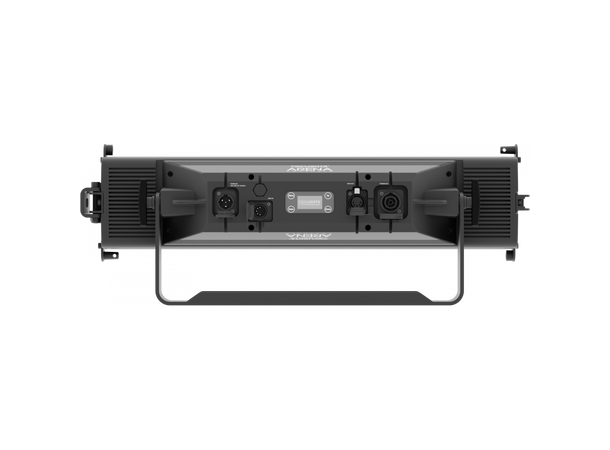

- Signal Connection: 5p IP in/out
- Power Connection: Seetronic Powerkon IP65 in/out
- IP: 54 Protective vent to prevent condensation, dust, compensate pressure
- Cooling: Natural cooling of the peculiar chassis and to absence of fans
- Suspension And Fixing: Hanging bracket suitable for safe hanging and for floor positioning
- Dimensions (WxHxD): 619x167x264mm
Weight: 7,9Kg
