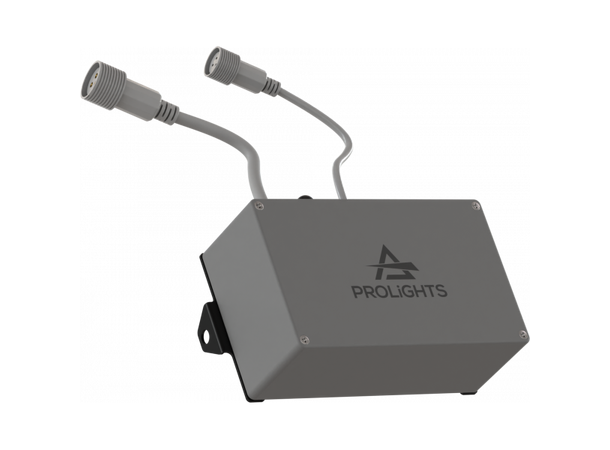

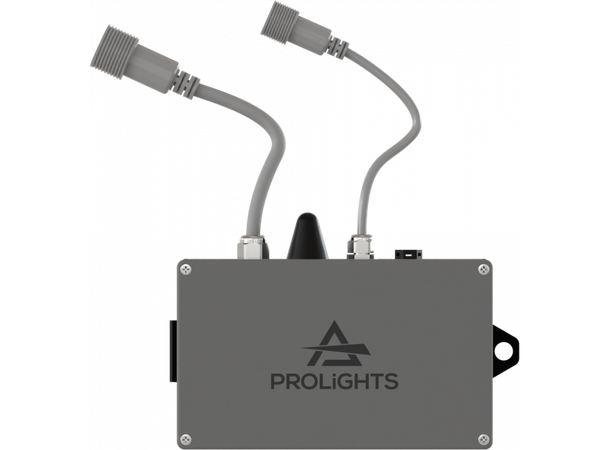

The CRMXBOXIP67 is an outdoor transceiver designed for permanent exterior installations. Capable of functioning as either a transmitter or receiver, it handles one DMX universe, accommodating up to 512 channels.
The unit’s compact form factor includes IP-rated screwed connectors for reliable power and signal connections. Its robust construction, featuring an IP67-rated enclosure and a vandal-resistant mounting cover, ensures durability against outdoor elements.
The device is user-friendly, equipped with an onboard display and buttons for straightforward setup. It is compatible with Lumen Radio CRMX and Wireless DMX G protocols, offering versatile integration options.
Features:
IP67 Single Univers Wireless CRMX Transceiver unit
Power IN and DMX In/Out through IP screwed connectors
Either LumenRadio CRMX and Wireless DMX G transmission option
CONTROL
- Protocols: DMX512, RDM, CRMX
- DMX channels: 512channel
- Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
- RDM: RDM for remote monitoring and settings
- Display: Graphic User Interface
- Firmware upgrade: yes, via USB – DMX interface (UPBOXPRO) not included
ELECTRICAL
- Mains power supply: 100-240V – 50/60Hz
- Max power consumption: 6W
PHYSICAL
- Operating Temperature: -20° ~ +45°
- IP rating: 67
- Suspension and fixing: side holes for fixing to surfaces
- Signal connection: moulded IP signal IN (OUT) connector
- Power connection: moulded IP power IN connector
- Dimensions (WxHxD): 238x120x84mm
- Weight: 1,65kg
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE
BOX CONTENT
- 1 x CRMXBOXIP67
- 1 x User Manual
- NOTE: signal and power adapters not included.
- It is possible to order these adapters with the following spare parts codes:
- – SP014881 (IP-schuko adapter) compatible with AWEXAC1 series
- – SP014591 and SP014592 (IP-DMX male/female adapters) compatible with AWEX1DC series
- – SP015905 (IP-schuko adapter) compatible with AWEXAC2 series
- – SP016422 and SP016421 (IP-DMX male/female adapters) compatible with AWEX2DC series
