Beskrivelse
NB! STRØMKABEL LEVERES UTEN STØPSEL, SE TILBEHØR FOR ALTERNATIVER

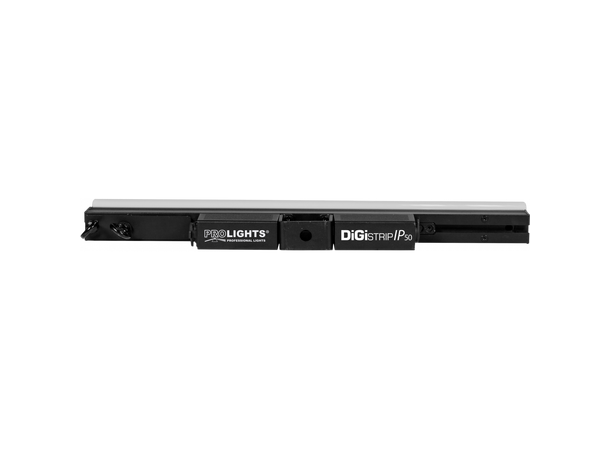

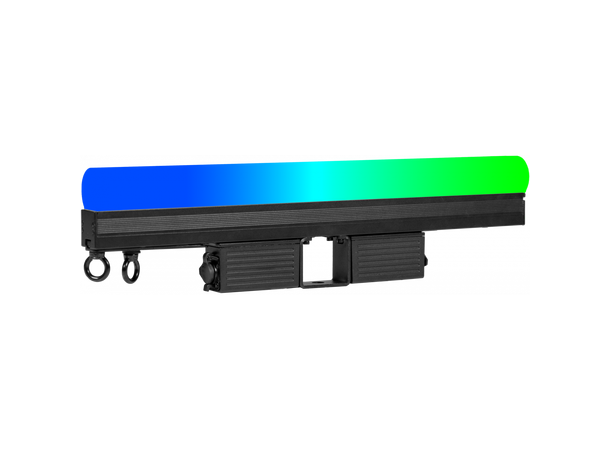

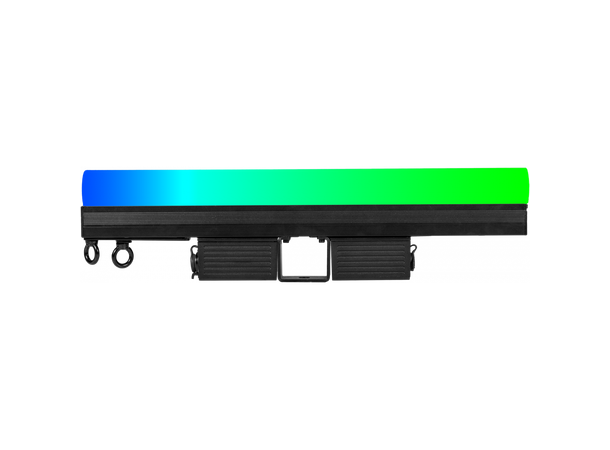

DIGISTRIPIP50 is a linear LED video fixture for the rental market wih 10 mm pixel pitch and an extensive range of optical accessories for a wide variety of looks (black and white milk included, transparent on demand). Each strip features 50 LED RGB/FC LEDs with individual pixel control, 50 cm long, 100° viewing angle. The mechanics of DIGISTRIPIP50 have been studied to grant a great mounting flexibility through a sliding hardwares on the back for truss application and on the side for multiple vertical linking. The external control unit DIGIDRIVERIP is compatible with Art-Net and Kling-Net protocol, and runs both signal and power over a 4 poles cable that provides greater stability and connection in daisy chain (up to 40 DIGISTRIPIP50).
Features:
High Resolution IP Video pixel batten, featuring 50 LEDs in a row
Several optional optical filters to deliver a wide range of different looks and finishing
Easy setup and wiring trhough the DIGIDRIVERIP
LIGHT SOURCE
- Source: 50 x 0,25W RGB LEDs
- Luminous Flux: Without cover 263 lm – Black cover 60 lm – Flat white milky cover 202 lm – Dome white milky cover 202lm
- Luminous Flux: Without cover 4320 nit – Black cover 727 nit – Flat white milky cover 1233.6 nit – Dome white milky cover 681.3nit
- Lux: 587 lux with clear coverlux
- Source Life Expectancy: >50.000 h
- Other: view angle 100°
OPTICS
- Pixel pitch: 10mm
- Additional Optics: black cover and milky dome cover (optional)
- Other: flat white milky cover (included)
COLOR SYSTEM
- Color Mixing: RGB/FC
BODY
- Hardware On-board: On board mechanics for modular assembly of multiple fixtures
- Body: Sturdy aluminum profile
- Body Color: White optic and body Black
CONTROL
- Control units: 40 pcs power&signal under one piece DIGIDRIVERIP
- Art-Net Channels: 150ch
- Protocols: Art-Net, Kling-Net, sACN
- Pixel Control: Pixel2Pixel control
ELECTRICAL
- Power Supply: DC 48 V
PHYSICAL
- Signal Connection: 4p in/out
- Power Connection: 4p in/out
- IP: 65
- Suspension And Fixing: Bracket for truss rigging and hardware for connection of more units
- Dimensions (WxHxD): 500x34x100mm
- Weight: 1,35kg
