EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, retail and any public venue where an advanced but classical looking fixture is needed, with several control options, sources and optic versions available to precisely meet any application.

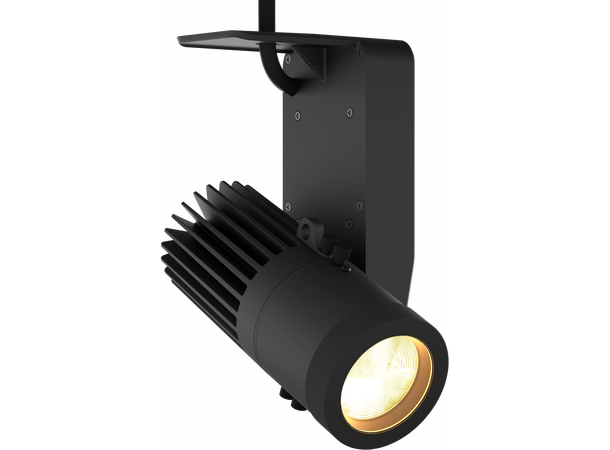

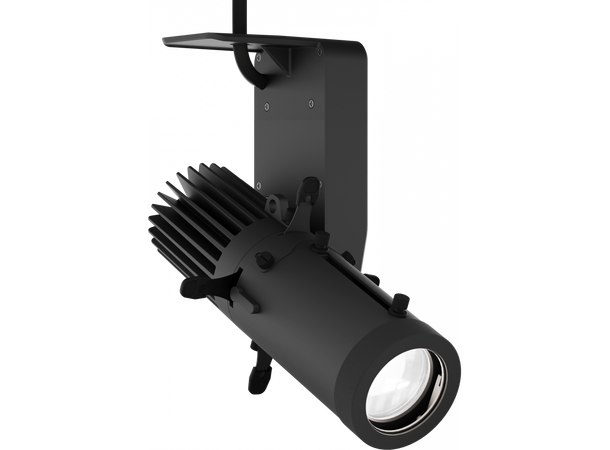

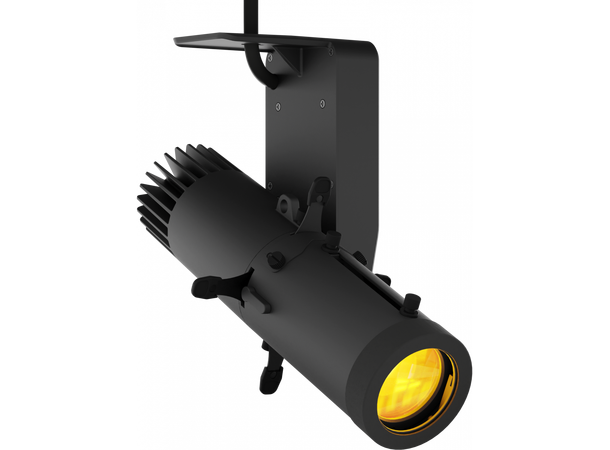

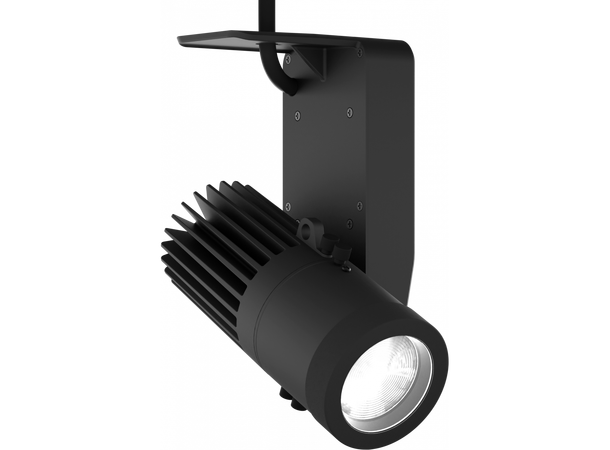

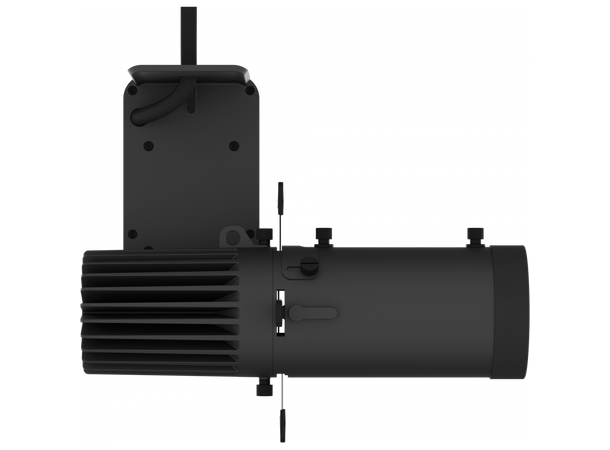

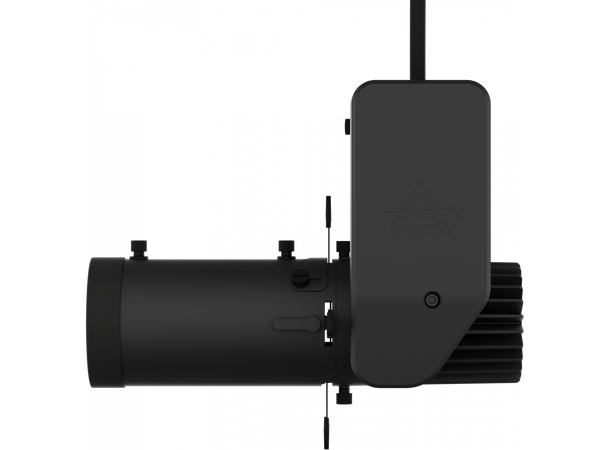

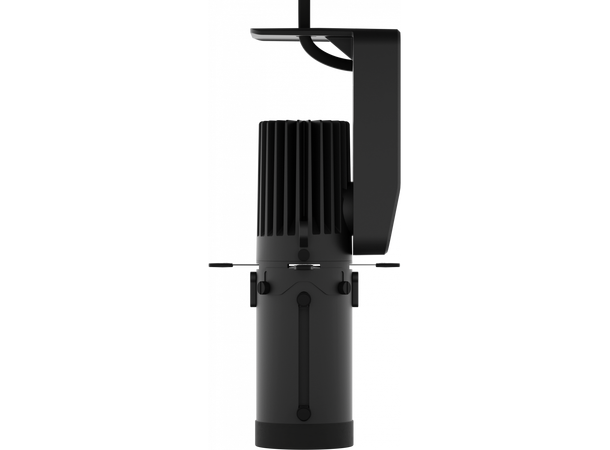

The EclDisplay CCFC is the version of the EclDisplay range made to be connected to an external Constant Current PSU and driver (max 4 x 1.4A/4.5V), selecting among the PROLIGHTS accessories or any third-party compatible component, leaving to System Integrators to install this luminaire in venues with their own wiring distribution and control. EclDisplay CCFC includes a high-efficiency 40W RGB + Warm White LED capable of delivering both a Full Colour spectrum and also tuneable White, and it is completed with a wide selection of optional zoomable profile or wash lenses, and other optical accessories like louvres and snoots, making it a truly a multi-purpose fixture.
Features:
Constant Current version to be connected to external PSU and driver (max 4 x 1.4A/4.5V)
40W RGB + Warm White LED capable to deliver both a Full Colour generation and also Tunable White
Multiple lens options: zoomable profile or wash optics
LIGHT SOURCE
-
Source:
40
W
RGB + Warm White LED
-
Luminous flux:
(profile – 20°) 366 lm – (profile – 40°) 325 lm; (wash 2550 – min) 308 lm – (wash 2550 – max) 407 lm; (wash 1530 – min) 309 lm – (wash 1530 – max) 343
lm
@full
-
Lux:
(profile – 20°) 194 lx – (profile – 40°) 42lx; (wash 2550 – min) 49 lx – (wash 2550 – max) 20 lx; (wash 1530 – min) 119 lx – (wash 1530 – max) 58
lx
@5 m full
-
Source life expectancy:
> 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
-
Zoom:
(wash lens – optional) 15° ~ 30° or 25° ~ 50° – (profile lens – optional) 20° ~ 40
°
-
Other:
360° lens rotation – shutter blades lockable – optional 360° rotating barndoors and gel frame holder
-
Other:
(profile lens) shutter blades lockable
-
Other:
(profile lens – optional) manual rotating gobo holder size E, outer: 37 mm – image: 23 mm – thickness: max 3 mm
COLOUR SYSTEM
-
Colour mixing:
RGB + Warm White
BODY
-
Hardware on-board:
lockable tilt with screw
-
Body:
aluminium die-casting
-
Body colour:
RAL 9004 or RAL 9010
-
Other:
1m cable included – Cable diameter range: 6 – 10 mm
ELECTRICAL
-
Constant Current mains:
max 4 x 1.4A/4.5V
-
Max power consumption:
30
W
PHYSICAL
-
Operating Temperature:
-10° ~ +45°
-
IP rating:
20
-
Cooling:
passive cooling and fan-free
-
Suspension and fixing:
hanging / ceiling installation
-
Data:
screw terminal blocks
-
Dimensions (WxHxD):
124X200x150
mm
-
Weight:
1,15
kg
Accessories (INCLUDED)
PLCLD88050 40W RGB+WW LED Gallery light, Tunable White and FullColour, CC, ext. PSU&Driver
