Beskrivelse
NB! STRØMKABEL LEVERES UTEN STØPSEL, SE TILBEHØR FOR ALTERNATIVER
The EclPendant S merges elegant design with cutting-edge, eco-friendly technology, ensuring optimal illumination for any venue. This series of pendant lights offers a diverse range of LED sources, including options in RGB + Warm White, Variable White and single color (3000K, 4000K and 5600K), each featuring a 50 Watt LED that provides high-quality light output, uniform color, and remarkable durability.
Completed by a wide range of optics, accessories, and versatile mounting solutions, the EclPendant S adapts to various installation needs. Mounting alternatives include pendant, surface, stem, wall, adjustable bracket, and recessed options. It can be directly wired to mains power (100-240 VAC or 48 VDC) and integrates seamlessly with control protocols like DMX + RDM and DALI, thanks to its accessible terminal blocks.
User-friendly settings are manageable via the unit’s onboard GUI, enhancing its functionality. The fixture’s wide array of optics and accessories is designed for utmost flexibility and precision, allowing easy on-site changes without complications.
Notably, the EclPendant S features a fan-free thermal design, ensuring quiet operation while delivering consistent and robust lumen output throughout its extended lifespan.
* Please note: The hanging bracket is not included with the product.
Features:
House light with 50W 3000K, 4000K and 5600K LED source with passive cooling
100-240 VAC or 48 VDC power input. Control via DALI, DMX, RDM
Extensive mounting option, optics and accessories available
LIGHT SOURCE
- Source: 50W COB LED
- CCT: 3000K (TU), 4000K (NW), 5600K (DY)
- Luminous flux: (TU) 2’814 lm; (NW) 3’851 lm; (DY) 4’045lm @full
- Lux: (TU) 796 lx; (NW) 1’079 lx; (DY) 1’116lx @5 m full
- CRI: (TU) 98,1; (NW) 95,3; (DY) 95,2
- R9: (TU) 91,8; (NW) 89,2; (DY) 91,8
- TLCI: (TU) 98; (NW) 96; (DY) 96
- TM30 Rf: (TU) 93,4; (NW) 92,3; (DY) 90,9
- TM30 Rg: (TU) 99,1; (NW) 101,3; (DY) 100,8
- Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
- Beam angle: 20°
- Field angle: 40°
- Lens diameter: 100mm
- Lens type: fresnel lens
- Other: see available accessories
COLOUR SYSTEM
- Colour mixing: see available versions
DYNAMIC EFFECTS
- Static mode: selection of static dimmer
- Manual mode: manual adjustment of dimmer and strobe
- Auto mode: built-in programs with execution speed adjustment
BODY
- Body: sturdy die-cast aluminium body
- Body colour: RAL 9004 or RAL 9010
CONTROL
- Protocols: DALI Type6, DMX512, RDM
- DMX channels: UNO / DUO / Standard / Extendedchannel
- Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
- RDM: RDM for remote monitoring and settings

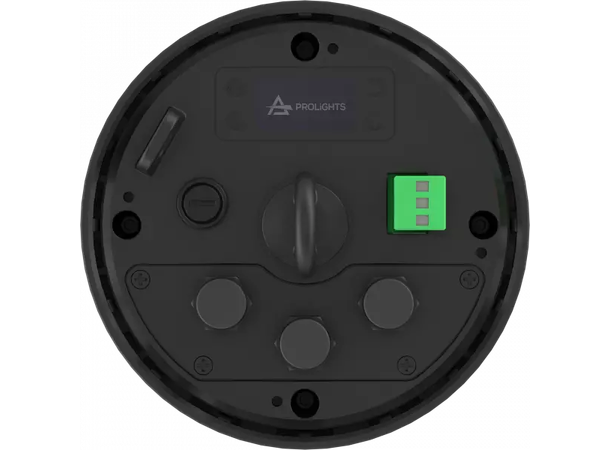

- Display: Graphic User Interface
- Firmware upgrade: yes, via USB – DMX interface (UPBOXPRO/UPBOX1) not included
- Other: 16bit control of dimmer
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 1-30 Hz, electronic
- Operating temperature: -10° ~ +45°
- LED Control: flicker free frequency with adjustable PWM
- Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL
- Mains power supply: 100-240V – 50/60Hz
- Low Voltage DC mains: DC 48V for emergency light use
- Max power consumption: 60W
- Output (at 230V): 21 units on a single power line
- Power factor: > 0,93
PHYSICAL
- IP rating: 20
- Cooling: Heatsink with heat pipes, passive cooling and fan-free
- Suspension and fixing: bracket for hanging and positioning (bracket not included on the product)
- Signal connection: Screw terminal block
- Power connection: Screw terminal block
- Dimensions (WxHxD): 135x300x135mm
- Weight: 3kg
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, RCM, FCC, cTUVus
BOX CONTENT
- 1 x ECLPENDANTS
- 1 x User Manual
- NOTE: no hanging bracket ECLPENDSHGBRK on board to the fixture
