Beskrivelse
NB! STRØMKABEL LEVERES UTEN STØPSEL. SE TILBEHØR FOR ALTERNATIVER

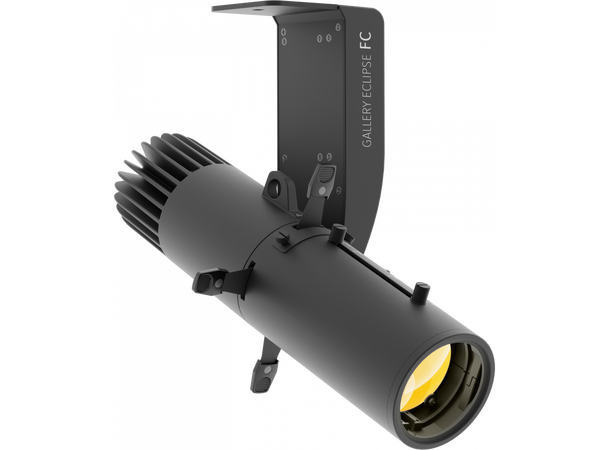

GALLERY ECLIPSE is a compact LED ellipsoidal luminaire designed for gallery, product, and shop window lighting. Featuring a beautiful controllable beam, and stunning aesthetics, the GALLERY ECLIPSE is a flexible tool for commercial and product lighting.
Features:
19° to 36° onboard zoom with full shutters
1x60W RGBW LED source
OptionalTrack adapter and on board Wireless DMX receiver
LIGHT SOURCE
- Source: 1x60W RGBW Osram LEDs
- Luminous Flux: (19°) 458 lm (36°) 570lm
- Luminous Flux: nit
- Lux: (19°) 570lux @3m Full
- Lux: (36°) 166lux @3m Full
- Source Life Expectancy: >30.000 h
OPTICS
- Zoom: 19°~36° Manual
- Lens Type: HQ glass lens optics
- Focus: Manual
COLOR SYSTEM
- Color Mixing: RGBW/FC
- CTC: CTC control through independent DMX channel
- White Presets: 2800-10000K
- Color Wheel: Virtual color wheel with presets
DYNAMIC EFFECTS
- Gobo Size: E
- Static Color Mode: Selection of static color
- Manual Color Mode: Manual adjustment of color
- Auto Mode: Built-in programs with execution speed adjustment
BODY
- Hardware On-board: Tilt lock on arm
- Body: Sturdy die-cast aluminium body conceived for long-time durability
- Body Color: Black/White
CONTROL
- Protocols: WDMX
- DMX Channels: 1-3ch
- W-DMX: Included, Wireless Solution receiver
- Display: Black OLED high resolution display
ELECTRONICS
- Dimmer: Linear 0~100% electronic dimmer
- Dimmer Curves: 4 Different dimming curves available
- Strobe/Shutter: 1-30 Hz, electronic
- Operating Temperature: -10° ~ +45°
- Flicker: Flicker free operation
ELECTRICAL
- Power Supply: 100-240V u2013 50/60Hz
- Power Consumption (at 230V): 43,5W
- Power Consumption (at 120V): 43,8W
PHYSICAL
- Power Connection: 16A Shuko plug
- IP: 30
- Cooling: Natural cooling of the peculiar chassis and to absence of fans
- Dimensions (WxHxD): 183x230x338mm
- Weight: 2.9kg
