Beskrivelse
NB! STRØMKABEL LEVERES UTEN STØPSEL. SE TILBEHØR FOR ALTERNATIVER

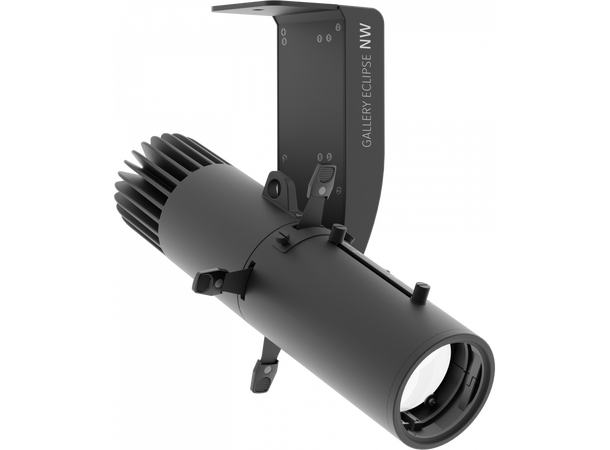

GALLERY ECLIPSE is a compact LED ellipsoidal luminaire designed for gallery, product, and shop window lighting. Featuring a beautiful controllable beam, and stunning aesthetics, the GALLERY ECLIPSE is a flexible tool for commercial and product lighting.
Features:
19° to 36° onboard zoom with full shutters.
3200K High CRI source.
Track adapter and Wireless DMX control options.
LIGHT SOURCE
- Source: 33,6W High Power White LED
- CT: (TU) 3110K – (NW) 4100K – (DY) 5000K
- CRI: (TU) 91,2 Ra – (NW) 90,8 Ra – (DY) 80,9Ra
- Luminous Flux: TU (19°) 1579 lm (36°) 2144 lm – NW (19°) 1537 lm (36°) 2243 lm – DY (19°) 2148 lm (36°) 2959lm
- Lux: 19° – (TU) 2810 lux – (NW) 3040 lux (DY) 3520lux @3m
- Lux: 36° – (TU) 892 lux – (NW) 940 lux (DY) 990lux @3m
- Source Life Expectancy: >30.000 h
OPTICS
- Zoom: 19°~36° Manual
- Lens Type: HQ glass lens optics
- Focus: Manual
DYNAMIC EFFECTS
- Gobo Size: E
- Manual Color Mode: Manual adjustment of dimmer and strobe
- Auto Mode: Built-in programs with execution speed adjustment
BODY
- Body: Sturdy die-cast aluminium body conceived for long-time durability
- Body Color: Black/White
CONTROL
- Protocols: WDMX
- DMX Channels: 1-3ch
- W-DMX: Included, Wireless Solution receiver
- Display: Black OLED high resolution display
ELECTRONICS
- Dimmer: Linear 0~100% electronic dimmer
- Dimmer Curves: 4 Different dimming curves available
- Strobe/Shutter: 1-30 Hz, electronic
- Operating Temperature: -10° ~ +45°
- Flicker: Flicker free operation
ELECTRICAL
- Power Supply: 100-240V u2013 50/60Hz
- Power Consumption (at 230V): 41,5W
- Power Consumption (at 120V): 41,7W
PHYSICAL
- Power Connection: 16A Shuko plug
- IP: 30
- Cooling: Natural cooling of the peculiar chassis and to absence of fans
- Dimensions (WxHxD): 183x230x338mm
- Weight: 2.5kg
