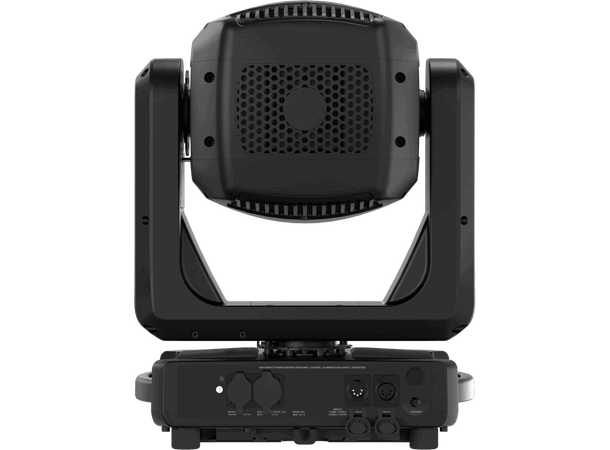

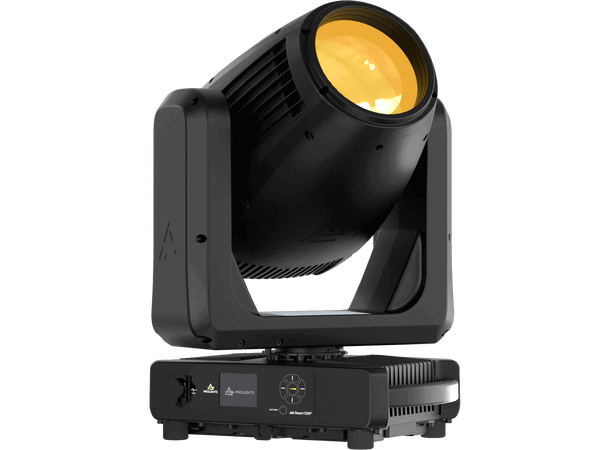

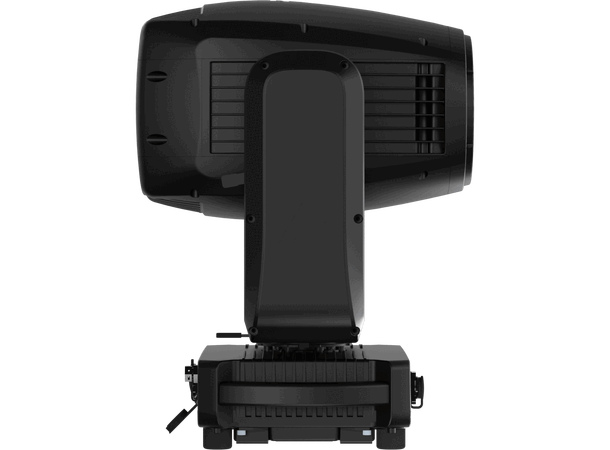

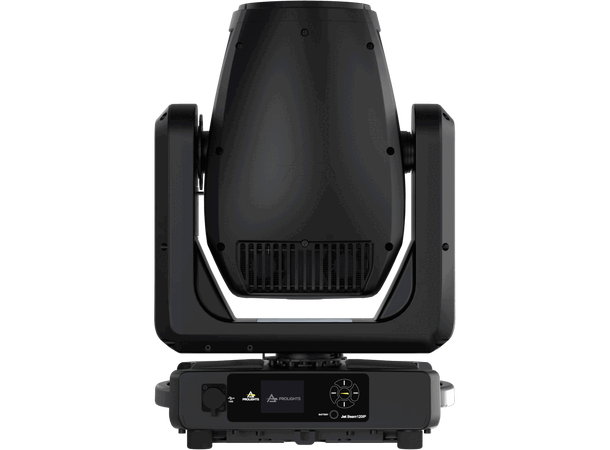

IP65 120W Moving beam with phosphor laser source
Jet Beam120IP is a budget-friendly, high-power, laser-based IP65 beam moving head built to deliver impressive, powerful looks without breaking the budget. Designed for long-throw aerial effects, it delivers extreme intensity and razor-sharp definition for professional indoor and outdoor productions.
A 120W phosphor-laser source (7.000 K) produces a tight 0.6° beam for maximum reach and contrast. Delivering over 200’000 lx at 15 m through a 143 mm front lens, Jet Beam120IP maintains a dense, parallel beam that stays clean and impactful over distance, with motorised focus for crisp output along the entire beam path.
Its effects package is optimised for speed and clarity: a 24-filter colour wheel (including CTB/CTO), 29 fixed gobos, an animation wheel, dual frost, and a prism system with six prisms across two independent wheels for layered aerial textures.
Built on a die-cast magnesium-alloy chassis with full IP65 construction, it’s ready for demanding environments. Control is flexible via DMX/RDM, with optional CRMX wireless connectivity for large indoor and outdoor stage applications.
Main features:
- 120W phosphor-laser source, IP65
- 0.6° beam, 143mm front lens
- 18 Kg, compact sizes
- 1 colour wheel (24 filters, CTB/CTO), 29 fixed gobos, 1 animation wheel, 2 frost, 6 prisms
Technical specifications
LIGHT SOURCE
- Source: 120W Phosphor Laser source
- CCT: 7’000K
- Lux: 204’167lx @15 m full
- Source life expectancy: > 12.000 h
OPTICS
- Beam angle: 0,6°
- Lens diameter: 143mm / 5.63»
- Lens type: HD anti-reflection lenses with achromatic coating
- Focus: motorised 16-bit
- COLOUR SYSTEM
- CCT: several CTB/CTO on wheel
- Colour wheel: open + 24 colour filters
DYNAMIC EFFECTS
- Control Resolution: 16-bit dimmer control
- Animation wheel: animation wheel with CW and CCW rotation
- Fixed gobos: 29 fixed gobos + open
- FX generator: prisms overlap for spectacular aerial effects
- Circular prism: (prism disk 1) 16f and 6f (prism disk 2) 8-f with bi-directional rotation, indexing, interchangeable
- Linear prism: (prism disk 1) 6f (prism disk 2) 4f and 6-f with bi-directional rotation, indexing, interchangeable
- Rotating prism wheel: 2 indipendent wheels with 3 prisms each
- Frost: dual soft-edge and heavy
CONTROL
- Supported Protocols: DMX512, RDM, CRMX (optional)
- DMX channels: 18ch
- Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
- RDM: for remote addressing and parameter configuration
- Display: LCD high resolution colour display with autoflip
- Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included) or via USB pen drive
BODY
- Pan: 540°
- Tilt: 270°
- Pan/Tilt resolution: bit 16-bit
- Position feedback: automatic pan/tilt repositioning after external movement
- Housing: Weatherproof IP65 construction with die-cast magnesium alloy
- Finish: black
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 1-30 Hz, electronic
- Operating temperature: Ta -20 to +45 °C (-4 to +113 °F)
- LED Control: flicker free frequency with adjustable PWM
- Selectable PWM: 600 to 50000 Hz (selectable steps)
ELECTRICAL
- Mains power supply: 100-240V – 50/60Hz
- Max power consumption: 150W
- Standby power: 66,4 W
- Output (at 230V): 14 units on a single power line
- Power factor: > 0,96
PHYSICAL
- IP rating: IP65 for temporary outdoor use (*)
- Cooling: heat pipe with low-noise fan
- Suspension and fixing: any position with quick-lock omega brackets
- Pan / tilt lock: for transportation and maintenance
- Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
- Power connection: Seetronic powerCON TRUE IP65 IN
- Dimensions (WxHxD): 366x533x243mm / 14.41»x20.98»x9.57»
- Weight: 18,5kg / 40.79lbs(*)
- NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE
BOX CONTENT
- 1 x JETBEAM120IP
- 2 x OSIPPLUS
- 1 x 1,5 meters 3G1,5mmq power cable (BARE END – SEETRONIC POWERCON TRUE1 IP65 power connector)
- User Manual
