Beskrivelse
NB! STRØMKABEL LEVERES UTEN STØPSEL. SE TILBEHØR FOR ALTERNATIVER

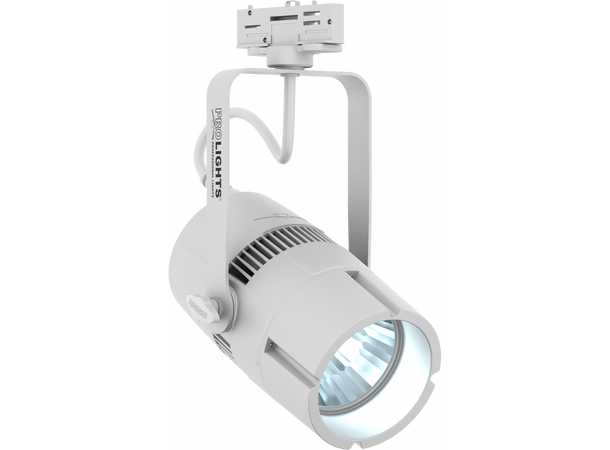

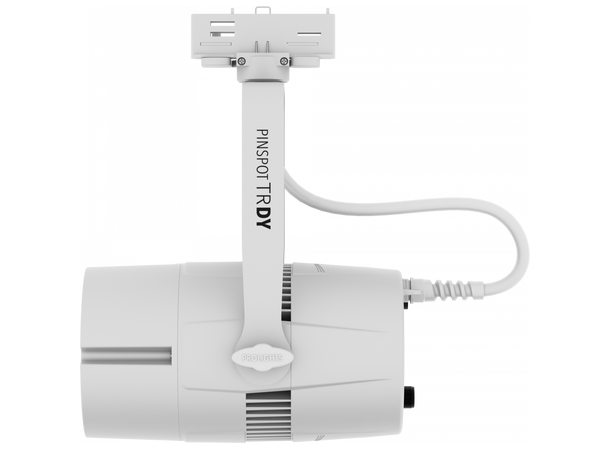

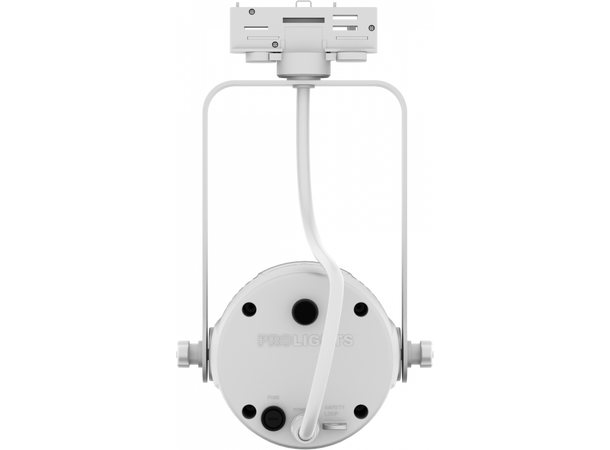

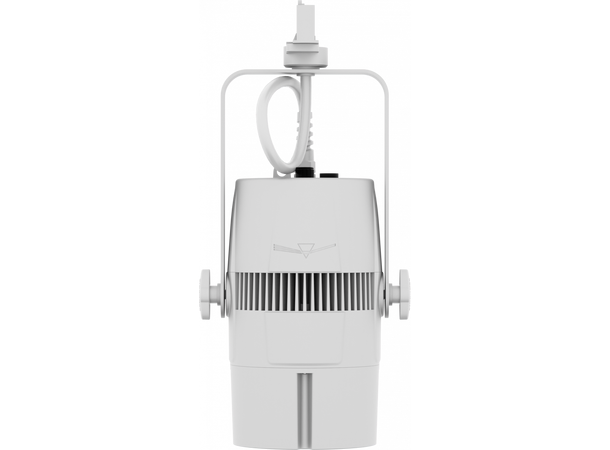

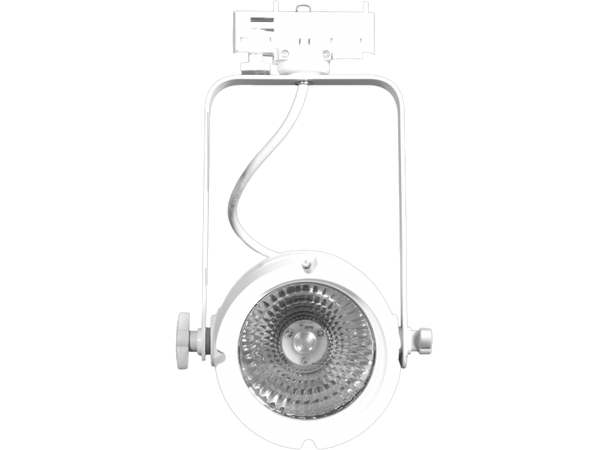

PINSPOT LED is a true LED replacement for a traditional pinspot.
Featuring both the beam and output characteristics of the original, the PINSPOT is able to be used in all the same applications.
Features:
High power LED source and parabolic reflector deliver tight, bright beam.
Available in both Tungsten and Daylight Colour Temperature versions.
Remove heat, dimmers and lamp changes in one go.
LIGHT SOURCE
- Source: 13W High Power White LED
- CT: (TU) 2800 K – (DY) 6100K
- CRI: (TU) 90 Ra – (DY) 80Ra
- Luminous Flux: (TU) 775 lm – (DY) 978lm
- Lux: (TU) 5030 lux – (DY) 6320lux @3m
- Source Life Expectancy: >30.000 h
OPTICS
- Beam Angle: 6°
- Field Angle: 12°
DYNAMIC EFFECTS
- Static Color Mode: Selection of static dimmer
- Manual Color Mode: Manual adjustment of dimmer and strobe
- Auto Mode: Built-in programs with execution speed adjustment
BODY
- Body: Sturdy die-cast aluminium body conceived for long-time durability
- Body Color: White
ELECTRONICS
- Dimmer: Linear 0~100%, manual knob, electronic dimmer
- Dimmer Curves: 4 Different dimming curves available
- Operating Temperature: -10° ~ +45°
ELECTRICAL
- Power Supply: 100-240V u2013 50/60Hz
- Power Consumption (at 230V): 18,9W
- Power Consumption (at 120V): 19.6W
PHYSICAL
- Cooling: Natural cooling of the peculiar chassis and to absence of fans
- Suspension And Fixing: Track-Adapter included for suspension and fixing
- Power Connection: Track Adaptor (EUTRAC, STAFF, GLOBAL, IVELA compatible)
- IP: 30
- Dimensions (WxHxD): 209x167x238mm
- Weight: 1,8kg
