Beskrivelse
NB! STRØMKABEL LEVERES UTEN STØPSEL. SE TILBEHØR FOR ALTERNATIVER

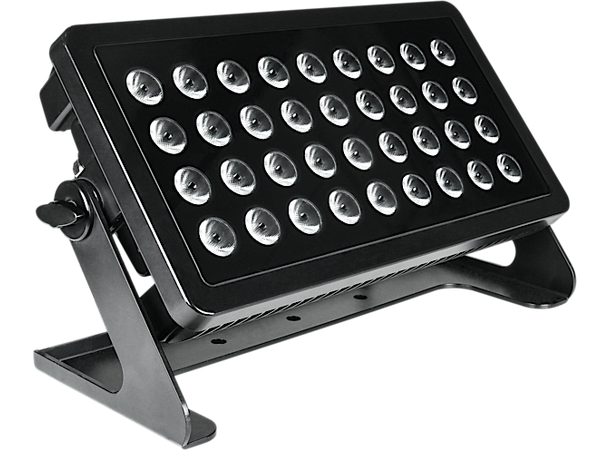

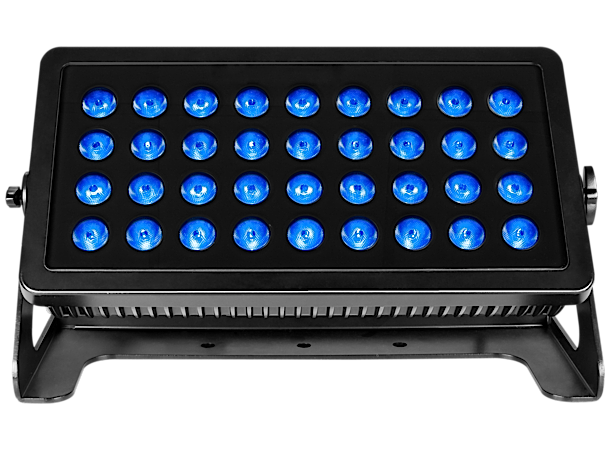

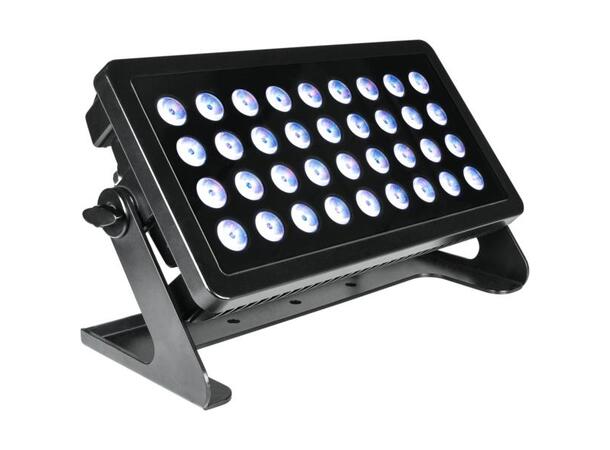

SOLAR is a wash-light with 36x8W RGBW/FC LED source conceived for those outdoor installations where a projector with high performance in brightness and chromatic precision is required.
Design with rectangular shape and superslim profile allow SOLAR to be easily integrated in any architectonic context, also in outdoor (IP65) environments due to construction of chassis in die-case aluminium and tempered glass with no usage of fans for ventilation.
SOLAR features 4D (RGBW) color mixing, DMX virtual color wheel, CTC, built-in WDMX module, 250W power consumption and LED source expected life of over 50’000 hours.
Optics are interchangeable and allow change between Narrow (15°) and Medium (25°) projections, while front panel is designed to fit flood filters with magnetic fixing.
User menu and setting are accessed through a 4-button touch-sensitive LED interface while 3 different DMX modes (4ch to 10ch) are available.
SOLAR is a compact projector capable of lighting large spaces, either as a stage-wash in temporary events and for projects of architectural lighting.
Light source and optics
36x8W RGBW/FC LEDs

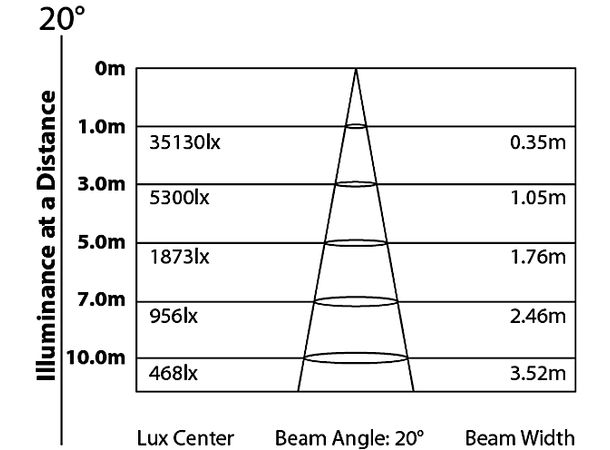

Lux: 5300lx@3mt
Hi-efficiency LEDs featuring more vivid colours and lower power consumption compared to traditional lamps
Colour synthesis: 4-in-1 RGBW color mixing for advanced control over color tones, saturation and temperature
White temperature presets: 3200K~10000K
Projection angle: 25° (15° optional)
LEDs average life span: >50’000 h
Electronics and features
Several DMX selectable configurations (4, 6, 10 channels) for advanced or basic controlling
4 channels: RGBW
6 channels: RGBW, dimmer, strobe
10 channels: dimmer, RGBW, strobe, macro, auto programs, program speed, dimmer speed
WDMX: built-in antenna receiver/repeater (2.4 GHz) by Wireless Solution Sweden
Touch-sensitive LED display user interface for auto programs execution, static colour mode, creation of custom shows, color presets calibration
5 different dimming curves available
Master/Slave mode for stand-alone operations of more units
Linear and “stepless” transition between DMX values
Flicker free operations (400Hz)

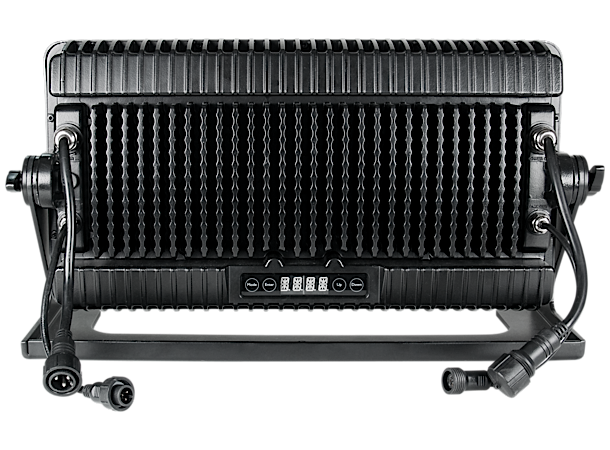

Silent operations, due to natural cooling of the peculiar chassis and to absence of fans
Structure and Power supply
Sturdy die-cast aluminium body conceived for long-time durability and demanding applications
Tempered glass front panel
Internal Protection: IP65 (IP)
Pressure and temperature balance through GORE membrane vents
Power (shuko) and data (xlr-3p) adapter cables included
Double hanging bracket suitable for safe hanging and for floor positioning
Power unit: 100-240V 50/60Hz
Working temperature: -20/+45°
Power output to link more units in a chain: up to 6 fixtures at 230V
Max power consumption: 245W
Weight: 14,5kg

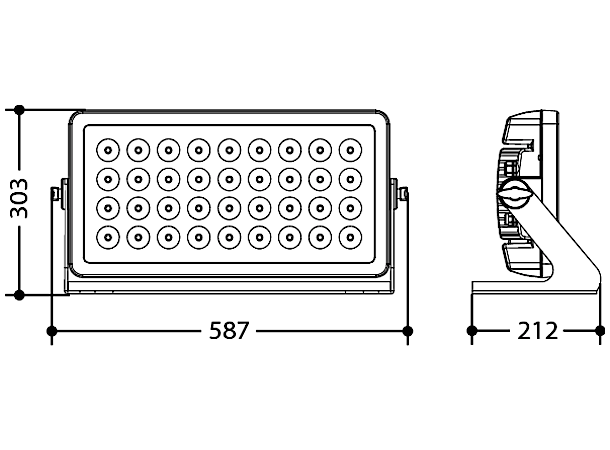

Dimensions (WxHxD): 587x303x102 mm
