Beskrivelse
NB! Demomodell. Skadet originalemballasje.

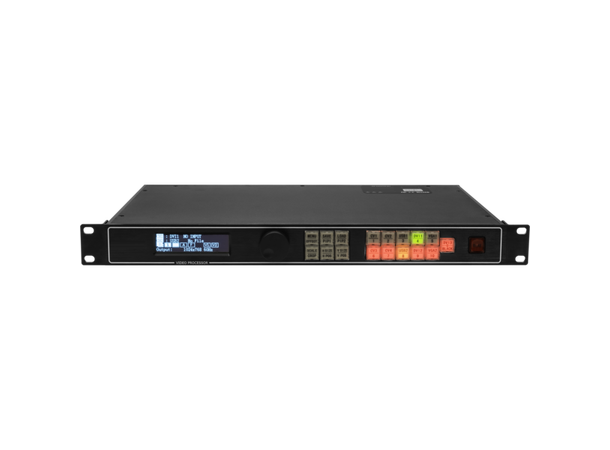

HD Video scaler for the conversion of the video signal compatible for the mounting of two sender card not included.

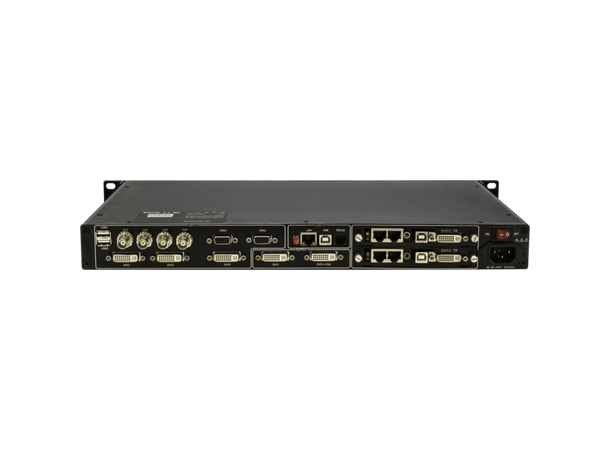

- Input connections: 4xComposite, 2xVGA, 2xDVI, Blackground/Split, 2xUSB
- Output connections: 2xDVI, VGA, support preview function
- Control interface: front panel, RS232+USB+TCP/IP
- Compatible with VMSC20L (Linsn protocol) and VMSC10N (Novastar protocol) sender cards not included
- User interface through LCD graphic display and buttons for an easy access to settings, selection of input channels, brightness, setup
- Video processing gray level: 10bit
- Digital sampling: 30 bits, each color 10 bits to 165 Mhz
- Digital clock: timer function
- Color: 16,78 milion
- Level filter: 3 gradi
- Vertical filter: 3 gradi
- Encoder filter: 3 gradi
- Output resolution range: 800x600x60Hz – 1920x1080x60Hz
- Frequency range: automatic scanning 15KHz – 100KHz
- Shell: metal
- Dimensions: 483x47x270 mm
- Rack units: 1
- Weight: 2 kg
- Power supply: VDE 100-240V 50/60 Hz, 25W
- Temperature: 0°C-40°C
Humidity: 10%-85%
