Beskrivelse
Prolyte Produktnummer: RT-H30V-C003

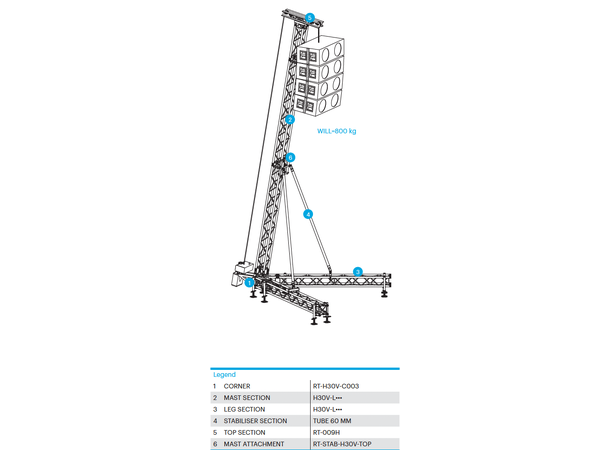

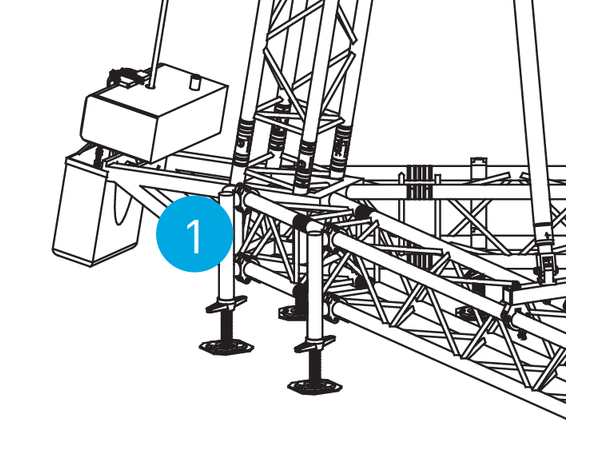

The light-duty RT-H30V has a loading capacity of 800 kg and amaximum lifting height of 7,60 m. The RT H30V is based on H30Vtruss with stabilisers of 60 mm tube. It has a self-weight of 260kg. The legs of the V-shaped base can be levelled by means ofscrew jacks, which are attached to the side of the legs.After the base is placed, the mast can be build and erected usingthe hinges on the base corner. The mast should be stabilised bymeans of the braces, which fix to the legs. After the system islevelled and ballast is applied, the load can be hoisted in position.Its relatively small dimensions make it suitable for a range ofapplications, including outdoor events, concerts, shoppingmalls, halls, exhibition areas and theme parks.
