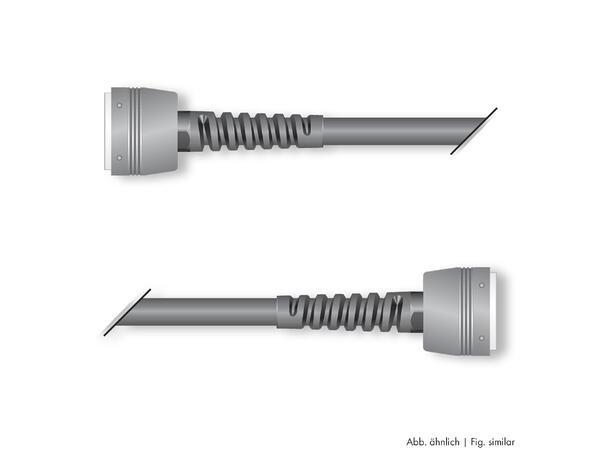

SC-ATRIUM FLEX
We deliver our robust and sturdy SC-ATRIUM Flex cable family (flexible inner construction pursuant to VDE 0295/class 5) finished with dependable ILME rectangular connectors (compatible with Harting HAN E series) or now also with HI-SOCA19 round connectors (compatible with Socapex 419). As sleeve support and for optimal strain relief we use high-quality spiral sleeve support screw joints. For an easy extension of the load multicores we offer the SPY-MB… extension adapters.
Please note that with lighting and load applications all relevant VDE provisions and common accident prevention regulations must be observed.
Configuration:
50,00 m Load multicore SC-Atrium Flex; 13 x 2,50 mm²; PVC, Ø 16,10 mm; black (700-0051-1325)
1 x ILME rectangle MP 16, 16-pol , Socket insert screwed contacts, grey (CNEF16T)
1 x ILME rectangle MP 16, metal-, Sleeve housing, 4 bolts, grey (CAV16.21)
1 x Sommer cable Protective Bag for all MP, straight output, subsequent assembly, grey (BAG-CAV-O)
1 x ILME rectangle MP 16, 16-pol , Pin insert screwed contacts, grey (CNEM16T)
1 x ILME rectangle MP 16, metal-, Sleeve housing, 4 bolts, grey (CAV16.21)
1 x Sommer cable Protective Bag for all MP, straight output, subsequent assembly, grey (BAG-CAV-O)
Specifications:
| Length ft | 164,04 |
|---|---|
| Article number | ATY9-132-5000-SW |
| EAN | 4049371203005 |
| Colour | black |
| Length m | 50 |
| Brand | Sommer cable |
| Application | Power Distribution Systems |
| Inner conductor | 13 |
| AWG | 11 |
| Connector-Brand | ILME |
| Cable | SC-Atrium Flex |
| Cable | 13 x 2,5 mm² |
| Type | multipin |
| Type (detailed) | Multipin 1 x 16-pole male |
| Type (detailed) | Multipin 1 x 16-pole female |
