Beskrivelse

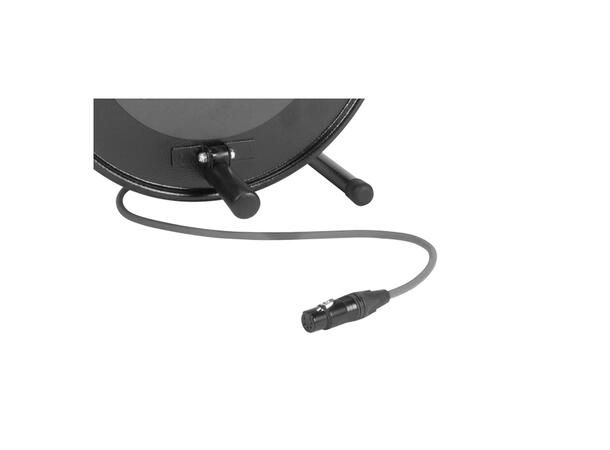

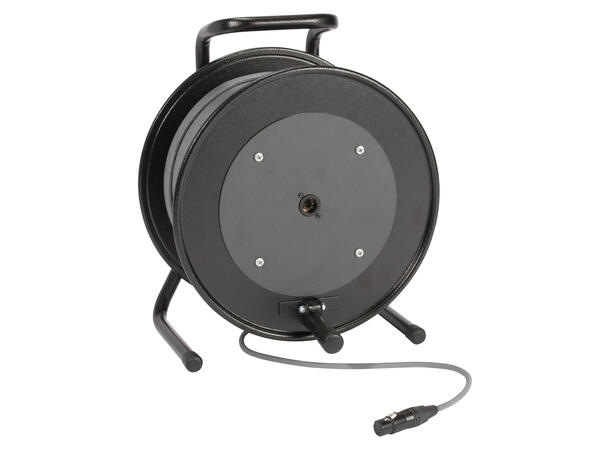

We supply a light-weight and very sturdy HT300K cable reel made by SCHILL. It is loaded with our stage-proof and flexible 4-wire BINARY 434 DMX512 cable (grey), which due to its large wire cross-section of 4 x 0.34 mm² is ideal for long distances. The reel has a front panel with a NEUTRIK NC5MDLX-B panel-mount XLR connector male, the cable is terminated with a NC5FXX-B XLR cable connector female.
Configuration:
70,00 m DMX Binary 434 DMX512; 4 x 0,34 mm²; PVC Ø 7,00 mm; grey (540-0056)
1 x SCHILL Kabeltrommel, HT300K-SW, core: 178 mm, thread width: 142 mm, metal (HT300K-SW)
1 x NEUTRIK XLR, 5-pol , metal-, Soldering-male connector, gold plated contact(s), Type D, chrome-plated (NC5MDLX-B)
1 x Sommer cable Front panel with 1 D-hole (XLR, etc.) for GT310, HT and SK-Modelle, anthracite RAL7016 (RUND01)
1 x NEUTRIK XLR, 5-pol , metal-, Soldering-female connector, gold plated contact(s), straight, chrome-plated (NC5FXX-B)
Specifications:
| Article number | B4E6H7000-GR |
|---|---|
| EAN | 4049371022460 |
| Colour | grey |
| Length m | 70 |
| Old article number | BYE6H4-7000-GR |
| Article number | B4E6H |
| Name | Binary 434 DMX512 |
| Brand | Sommer cable |
| Application | AES / EBU / DMX512 |
| Inner conductor | 4 |
| Inner conductor mm² | 0,34 |
| AWG | 22 |
| Connector-Brand | NEUTRIK |
| Additional function | on cable spool |
| Type | XLR |
| Type (detailed) | XLR 5-pole female |
| Type (detailed) | XLR 5-pole male |
| Old article number | BYE6H4 |
