Beskrivelse

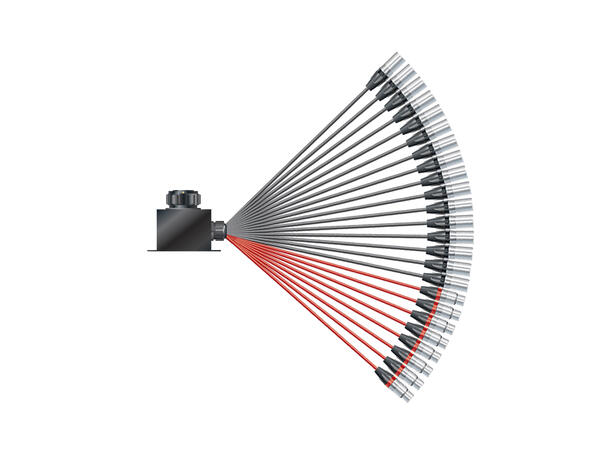

For the construction of these splices we use our highly flexible QUANTUM multipair cable with single insulated and shielded wire pairs. On the XLR side we use high-grade connectors with numbered rings from HICON and NEUTRIK; alternatively we also offer a version with NEUTRIK Convertcons on the returns.
Configuration:
19,20 m Patch cable SC-Isopod SO-F22; 2 x 0,22 mm²; PVC Ø 3,30 mm; black (200-0401)
9,60 m Patch cable SC-Isopod SO-F22; 2 x 0,22 mm²; PVC Ø 3,30 mm; red (200-0403)
1 x HICON Round LK, arrangement 40-56, size 16, 85-pole , metal-, Panel socket, bayonet husk, black (HI-LK085FP)
1 x HICON Round-LK 85 / LK 150 female (CIR32), Cover cap, Bajonet, black (HI-LKCAP-F85)
1 x VE-HOUSING
16 x NEUTRIK XLR, 3-pole , metal-, Soldering-male connector, silver plated contact(s), straight, nickel coloured (NC3MXX)
8 x NEUTRIK XLR, 3-pole , metal-, Soldering-female connector, silver plated contact(s), straight, nickel coloured (NC3FXX)
Specifications:
| Length ft | 3,94 |
|---|---|
| Article number | ISVC-M16/08-0120 |
| EAN | 4049371030717 |
| In | 16 |
| Out | 08 |
| Configuration | separate grounding |
| Length m | 1,2 |
| Article number | MCORE-LKSP |
| Name | Multicore-Kabel Rund-LK <-> Spleiss |
| Application | Multicore cable with round LK connector -> Splice |
| Additional function | seperate grounding |
| Old article number | QMAR-M |
