Beskrivelse
Configuration:

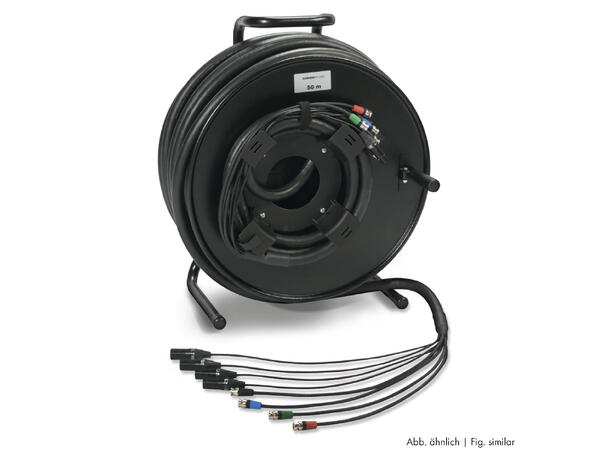

50,00 m Transit MC4400 Kombi HD-SDI; video: 4 x 0,60/2,80; audio: 4 x 2 x 0,14 mm²; PUR Ø 15,60 mm; black (600-1441)
1 x SCHILL Kabeltrommel, HT480-SW, core: 178 mm, thread width: 142 mm, metal (HT480-SW)
4 x NBNC75BFG7-D
4 x NEUTRIK XLR, 3-pole , metal-, Soldering-female connector, gold plated contact(s), straight, chrome-plated (NC3FXX-B)
1 x SCHILL Winding attachment, for cable splice for GT310, HT and SK-Modelle (KOMB.RM)
4 x NBNC75BFG7-D
4 x NEUTRIK XLR, 3-pole , metal-, Soldering-male connector, gold plated contact(s), straight, chrome-plated (NC3MXX-B)
Specifications:
| Length ft | 164,04 |
|---|---|
| Article number | MDD1H04/00-5000 |
| EAN | 4049371116282 |
| In | 04 |
| Out | 00 |
| Length m | 50 |
| Article number | MDD1H |
| Brand | Sommer cable |
| Application | MADI Connection systems |
| Connector-Brand | NEUTRIK |
| Cable | TRANSIT MC 4400 HD-SDI PUR |
| Additional function | on SCHILL HT series cable reel with auxiliary coil KOMB.RM |
| Type | XLR |
| Type | BNC |
| Type (detailed) | XLR 3-pole female |
| Type (detailed) | Reartwist BNC connector male |
| Type (detailed) | XLR 3-pole male |
