Beskrivelse
The robust LAN connection for mobile applications. For the cable we use the PUR version of our SC-Mercator CAT.6 PUR SUPERFLEX. The HIROSE RJ45 connectors are protected by the NEUTRIK EtherCon NE8MC1.
Miscellaneous:
- Version: 1:1
- For Ethersound Applications > 100m and for Ethernet applications > 85m we recommend the CAT.7 PUR XL.
Configuration:

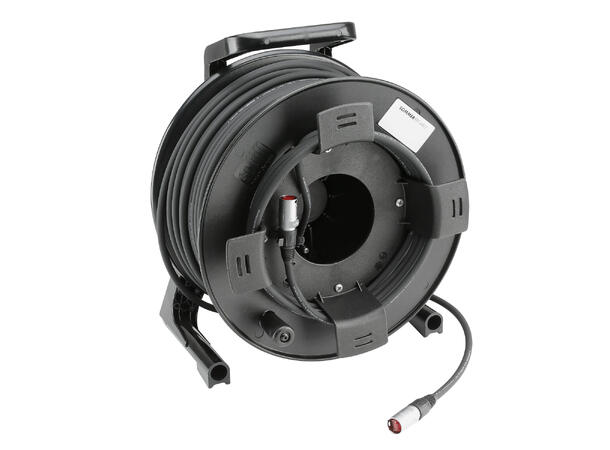

75,00 m Cat.6 SC-MERCATOR CAT.6 PUR SUPERFLEX; PUR; black, Ø 8,00 mm (580-0201)

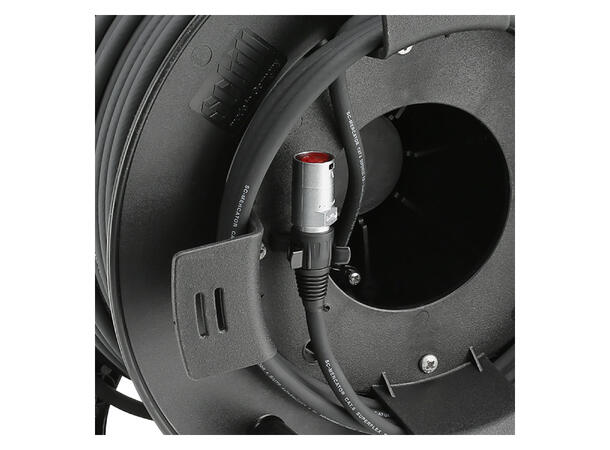

1 x SCHILL Kabeltrommel, GT310, core: 170 mm, thread width: 132 mm, Solid rubber (GT310)
1 x HIROSE RJ45 CAT.6, 8-pole , plastic-, crimp-male connector, gold plated contact(s), straight black (RJ45C6-SW)
1 x NE8MC1-D
1 x SCHILL Winding attachment, for cable splice for GT310, HT and SK-Modelle (KOMB.RM)
1 x +FEDERKLAMMER16
1 x HIROSE RJ45 CAT.6, 8-pole , plastic-, crimp-male connector, gold plated contact(s), straight black (RJ45C6-SW)
1 x NE8MC1-D
Specifications:
| EAN | 4049371381024 |
|---|---|
| Colour | black |
| Length m | 75 |
| Article number | X6NEG |
| Name | SC-Mercator CAT.6 PUR SUPERFLEX |
| Brand | Sommer cable |
| Application | network cable |
| Inner conductor | 8 |
| Inner conductor mm² | 0,14 |
| Connector-Brand | HIROSE |
| Connector-Brand | NEUTRIK |
| Additional function | On cable reel – GT310 |
| Type | RJ45 |
| Type (detailed) | NE8MC1 |
| Type (detailed) | RJ45 male |
