Beskrivelse
Owing to the partner cooperation with NEUTRIK the NL4FX Speakon connector is offered exclusively for Sommer cable with a labelling option which may be changed anytime (6 mm high e.g. for P-Touch).
The new NL4FX-SOM connector with a transparent ring will therefore replace the HICON HI-SPC4 loudspeaker
connector.
The NL4FX-SOM-D is either available ready-made with our cable series Meridian and Elephant or as bulk material for our major customers in packing units of 100 pcs.

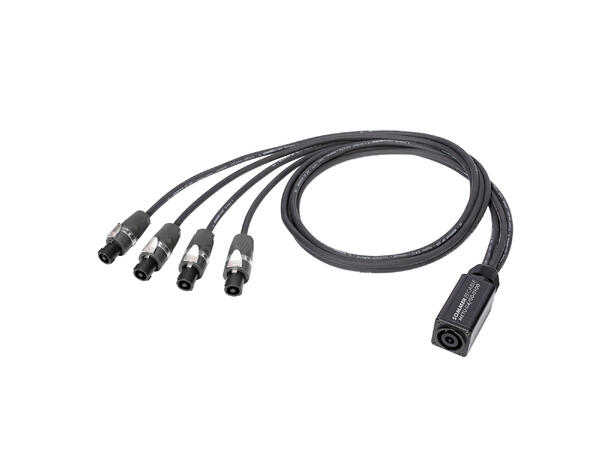

Configuration:
1,00 m Speaker Cable Meridian Mobile SP225; 2 x 2,50 mm²; PVC Ø 7,80 mm; black (425-0051)
1 x NEUTRIK SpeakON, 8-pole , metal-, 3/16′ Flat tabs-male connector, silver plated contact(s), Type G, chrome-plated (NL8MPR-BAG)
4 x NEUTRIK/SOMMER SpeakON, 4-pole , plastic-, screw terminal w/o wire protection-female connector, silver plated contact(s), straight, max. 4 mm², anthracite (NL4FX-SOM-D)
Specifications:
| Length ft | 3,28 |
|---|---|
| Article number | METU-04/00-0100 |
| EAN | 4049371038010 |
| In | 04 |
| Out | 00 |
| Length m | 1 |
| Brand | Sommer cable |
| Application | Speaker System |
| Connector-Brand | NEUTRIK |
| Cable | 2 x 2,5 mm² |
| Cable | SC-MERIDIAN |
| Type | multipin |
| Type | Speakon |
| Type (detailed) | Speakon adapter 8-pole |
| Type (detailed) | Speakon 4-pole |
