Beskrivelse

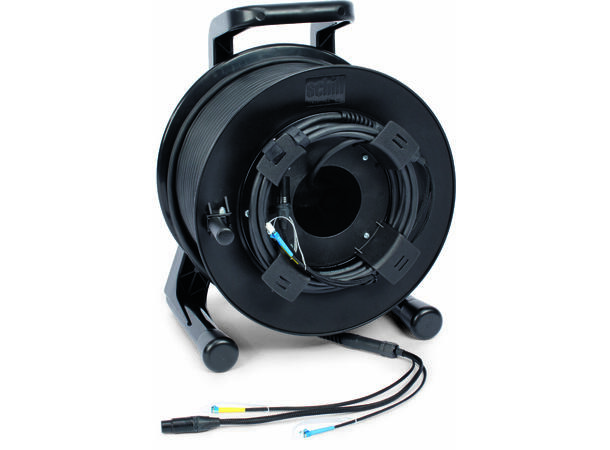

Hybrid Connection Cable for Camera systems (e.g. Blackmagic Design) Miscellaneous:
Configuration:
150,00 m SC-Octopus Hybrid 244; fiber: 2 x 9/125 µm; power: 1 x 0,50 mm²; 4 x control; PUR Ø 9,20 mm; black (591-2441)
2 x +LWL-LCXX/125S
1 x HICON XLR, 4-pole , metal-, Soldering-male connector, gold plated contact(s), straight, black (HI-X4CM-G)
2 x +LWL-LCXX/125S
1 x HICON XLR, 4-pole , metal-, Soldering-female connector, gold plated contact(s), straight, black (HI-X4CF-G)
Specifications:
| Length ft | 492,12 |
|---|---|
| EAN | 4049371317436 |
| Length m | 150 |
| Article number | OL9E-244 |
| Brand | Sommer cable |
| Application | LWL Hybrid cabel |
| AWG | 20 |
| AWG | 24 |
| Core (fiber) µm | 9 |
| Cladding (fiber) µm | 125 |
| Connector-Brand | HICON |
| Quality | OS2 |
| Type | LC |
| Type | XLR |
| Type (detailed) | XLR 4-pole male |
| Type (detailed) | LC male |
| Type (detailed) | XLR 4-pole female |
