Beskrivelse

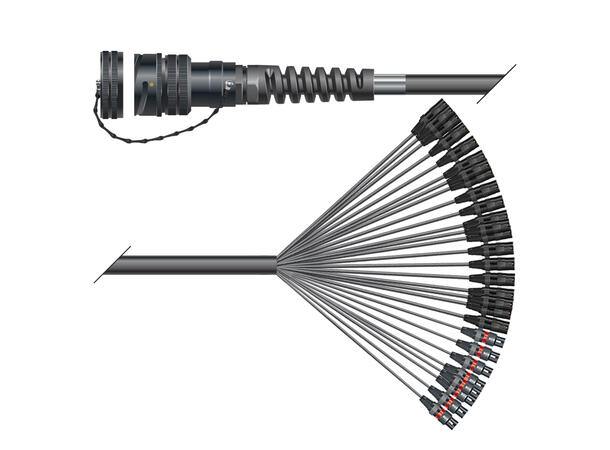

For the construction of these splices we use our highly flexible QUANTUM multipair cable with single insulated and shielded wire pairs. On the XLR side we use high-grade connectors with numbered rings from HICON and NEUTRIK; alternatively we also offer a version with NEUTRIK Convertcons on the returns.
Configuration:
3,00 m Multipair SC-Quantum QMC; S-PVC; black, mat | 2 x 0,14 mm² x number of pairs 12 (100-0451-12)
1 x HICON Round LK, arrangement 28-21, size 16, 37-pole , metal-, Cable connector, Bajonet, black (HI-LK037MV)
1 x HICON Round-LK 37 male (CIR28), Cover cap, Bajonet, black (HI-LKCAP-M37)
1 x Sommer cable Protective Bag for Round plug HI-LK up to 54-pole HI-SOCA 19-pole, subsequent assembly possible, grey (BAG-LKM-O)
0,05 x BPDWM-18/06-TR
8 x HI-X3CM-G-WOB
4 x HI-X3CF-G-WOB
0,05 x BPDWM-18/06-TR
Specifications:
| Length ft | 9,84 |
|---|---|
| Article number | QM6R-M08/04-0300 |
| EAN | 4049371134934 |
| In | 08 |
| Out | 04 |
| Configuration | separate grounding |
| Length m | 3 |
| Article number | MCORE-LKSP |
| Name | Multicore-Kabel Rund-LK <-> Spleiss |
| Application | Multicore cable with round LK connector -> Splice |
| Additional function | seperate grounding |
| Old article number | QMAR-M |
