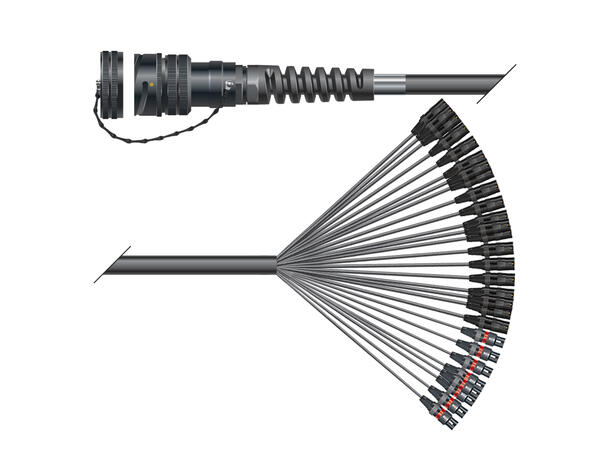

For the construction of these splices we use our highly flexible QUANTUM multipair cable with single insulated and shielded wire pairs. On the XLR side we use high-grade connectors with numbered rings from HICON and NEUTRIK; alternatively we also offer a version with NEUTRIK Convertcons on the returns.
Configuration:
25,00 m Multipair SC-Quantum QMC; S-PVC; black, mat | 2 x 0,14 mm² x number of pairs 32 (100-0451-32)
1 x HICON Round LK, arrangement 40A-150, size 18, 150-pol , metal-, Cable connector, Bajonet, black (HI-LK150MV)
1 x HICON Round-LK 85 / LK 150 male (CIR40), Cover cap, Bajonet, black (HI-LKCAP-M85)
1 x Sommer cable Protective Bag for all LK-cable connectors male / female, subsequent assembly, grey (BAG-LK-O)
0,05 x BPDWM-39/13-TR
24 x HI-X3CM-G-WOB
8 x HI-X3CF-G-WOB
0,05 x BPDWM-39/13-TR
Specifications:
| Length ft | 82,02 |
|---|---|
| Article number | QM3V-M24/08-2500 |
| EAN | 4049371134729 |
| In | 24 |
| Out | 08 |
| Configuration | separate grounding |
| Length m | 25 |
| Article number | MCORE-LKSP |
| Name | Multicore-Kabel Rund-LK <-> Spleiss |
| Application | Multicore cable with round LK connector -> Splice |
| Additional function | seperate grounding |
| Old article number | QMAR-M |
