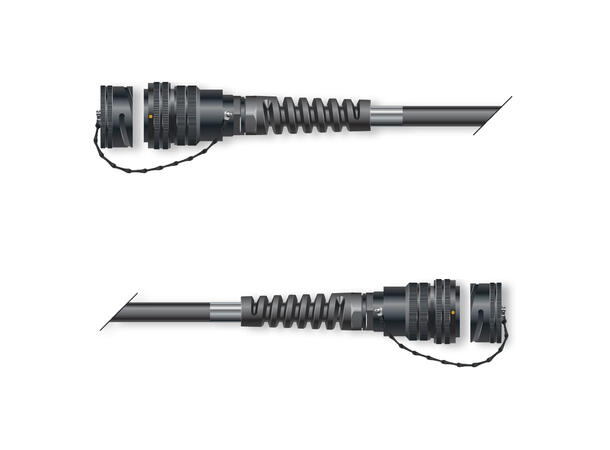

SOMMER Quantum LK Multikabel, 8 kanaler

Beskrivelse

We use the notch-resistant and dirt-repellent…

TRANSFER AMCK (single insulated wire pairs, cross-braided screen, highly flexible PUR-Blend jacket). As connectors we use two TOURLOCK multipin sockets (with protective caps). All multipairs shown here are equipped with separate grounding as standard. We have fitted a 10 cm unshrunk transparent shrink-on tube at both cable ends for your personal labelling. For the QM-versions we use our highly fl exible QUANTUM tailored for use in stage areas (stage sub-distributions). This cable can be reeled easily on your hand and fi ts nicely into every corner on stage.
By using the optionally available extension adapters (also nicknamed “spookies”), 2 x female-female cables can be linked as well.

We gladly accept your written orders for other confi gurations and special designs
by fax or e-mail under support@sommercable.com.
Complete with multipin protective bag!

Configuration:

15,00 m Multipair SC-Quantum QMC; S-PVC; black, mat | 2 x 0,14 mm² x number of pairs 08 (100-0451-08)
1 x HICON Round LK, arrangement 24 A – 25, size 16, 25-pole , metal-, Cable socket, bayonet husk, black (HI-LK025FV)
1 x HICON Round-LK 25 female (CIR25), Cover cap, Bajonet, black (HI-LKCAP-F25)
1 x Sommer cable Protective Bag for Round plug HI-LK up to 54-pole HI-SOCA 19-pole, subsequent assembly possible, grey (BAG-LKM-O)
0,05 x BPDWM-18/06-TR
1 x HICON Round LK, arrangement 24 A – 25, size 16, 25-pole , metal-, Cable socket, bayonet husk, black (HI-LK025FV)
1 x HICON Round-LK 25 female (CIR25), Cover cap, Bajonet, black (HI-LKCAP-F25)
1 x Sommer cable Protective Bag for Round plug HI-LK up to 54-pole HI-SOCA 19-pole, subsequent assembly possible, grey (BAG-LKM-O)
0,05 x BPDWM-18/06-TR
