Beskrivelse

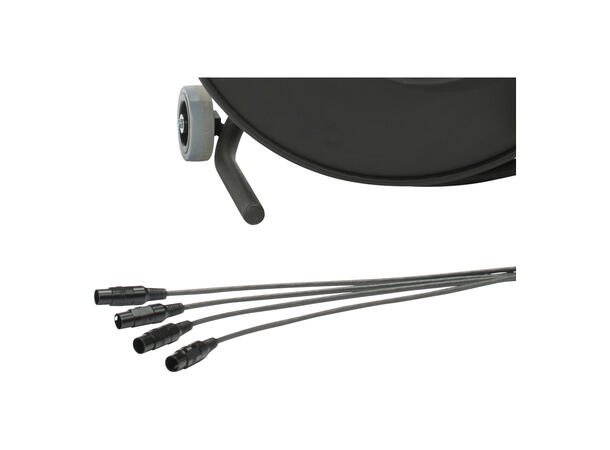

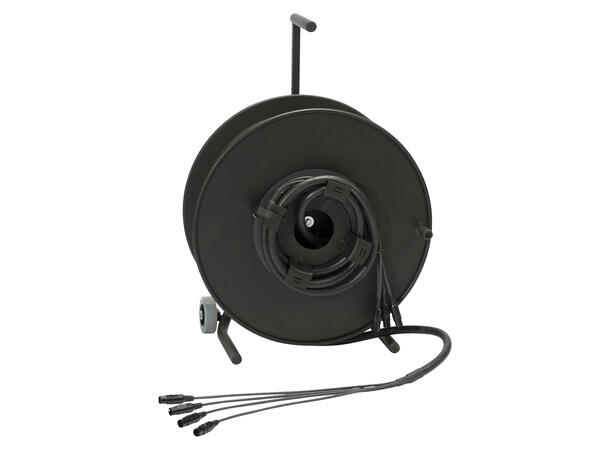

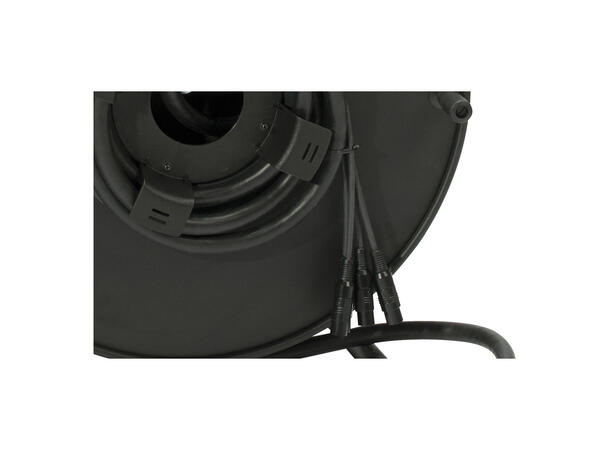

No less than four CAT.7 lines are combined here in a highly flexible and robust Strong-PVC jacket. Up to 4 high-speed ethernet or compatible signals can be transmitted simultaneously with it. We offer the cable premade and finished with HIROSE RJ45 connectors and as an extra with a protective housing made by HICON. Optionally the cables are also available on a reel.
Configuration:
30,00 m SC-Mercator; 4 x CAT.7; PVC Ø 22,50 mm; black (580-0311-04)
1 x SCHILL Kabeltrommel, HT485-SW, core: 178 mm, thread width: 210 mm, metal (HT485-SW)
4 x Neutrik RJ45 Ethercon CAT.6a, 8-pole , metal-, Clamp technic-male connector, straight, black (NE8MX6-B)
1 x SCHILL Winding attachment, for cable splice for GT310, HT and SK-Modelle (KOMB.RM)
4 x Neutrik RJ45 Ethercon CAT.6a, 8-pole , metal-, Clamp technic-male connector, straight, black (NE8MX6-B)
Specifications:
| EAN | 4049371269247 |
|---|---|
| Length m | 30 |
| Reel | HT series |
| Article number | K4VZ |
| Name | SC-Mercator CAT.7 |
| Brand | Sommer cable |
| Application | network cable |
| Inner conductor | 8 |
| Inner conductor mm² | 0,22 |
| Connector-Brand | Neutrik |
| Type | RJ45 |
| Type (detailed) | NE8MX6-B |
