Beskrivelse

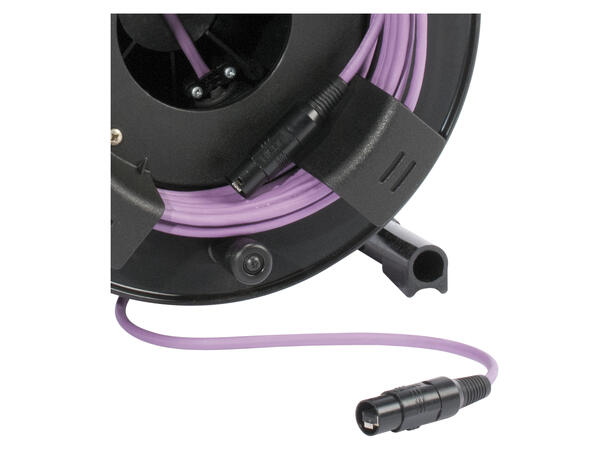

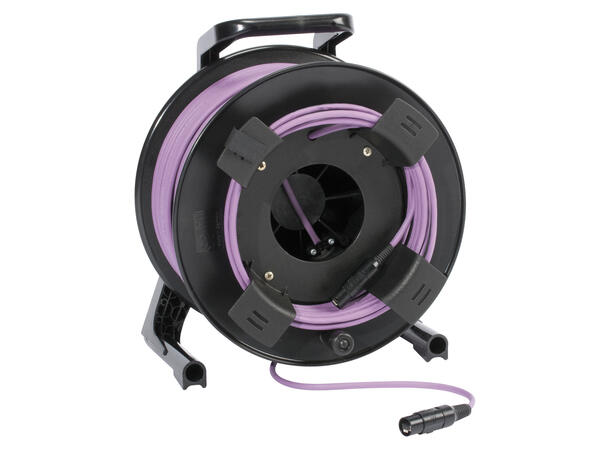

NB! Bildet viser kabel i lilla utførelse. Se varetekst for rett beskrivelse
Miscellaneous:
- Version: 1:1
- For Ethersound Applications > 100m and for Ethernet applications > 85m we recommend the CAT.7 PUR XL.
Configuration:
70,00 m SC-Mercator CAT.7 PUR; PUR; black, Ø 6,50 mm (581-0071)
1 x SCHILL Kabeltrommel, GT310, core: 170 mm, thread width: 132 mm, Solid rubber (GT310)
1 x HIROSE RJ45 CAT.6a, 8-pole , plastic-, crimp-male connector, gold plated contact(s), straight black (RJ45C6A-SW)
1 x HICON Connector housing XLR format for RJ45-Standard Connectors, black (HI-RJ45-HD)
1 x HI-RC-RT-D
1 x SCHILL Winding attachment, for cable splice for GT310, HT and SK-Modelle (KOMB.RM)
1 x +FEDERKLAMMER16
1 x HIROSE RJ45 CAT.6a, 8-pole , plastic-, crimp-male connector, gold plated contact(s), straight black (RJ45C6A-SW)
1 x HICON Connector housing XLR format for RJ45-Standard Connectors, black (HI-RJ45-HD)
1 x HI-RC-RT-D
Specifications:
| Length ft | 229,66 |
|---|---|
| Article number | P7B5G7000-SW-RT |
| EAN | 4049371204521 |
| Colour | black |
| Length m | 70 |
| Available since | V07.0 |
| Article number | P7B5G |
| Name | SC-Mercator PUR |
| Brand | Sommer cable |
| Application | network cable |
| Inner conductor | 8 |
| Inner conductor mm² | 0,14 |
| Connector-Brand | HIROSE |
| Additional function | on cable spool |
| Type | RJ45 |
| Type (detailed) | HI-RJ45-HD |
| Type (detailed) | RJ45 male |
